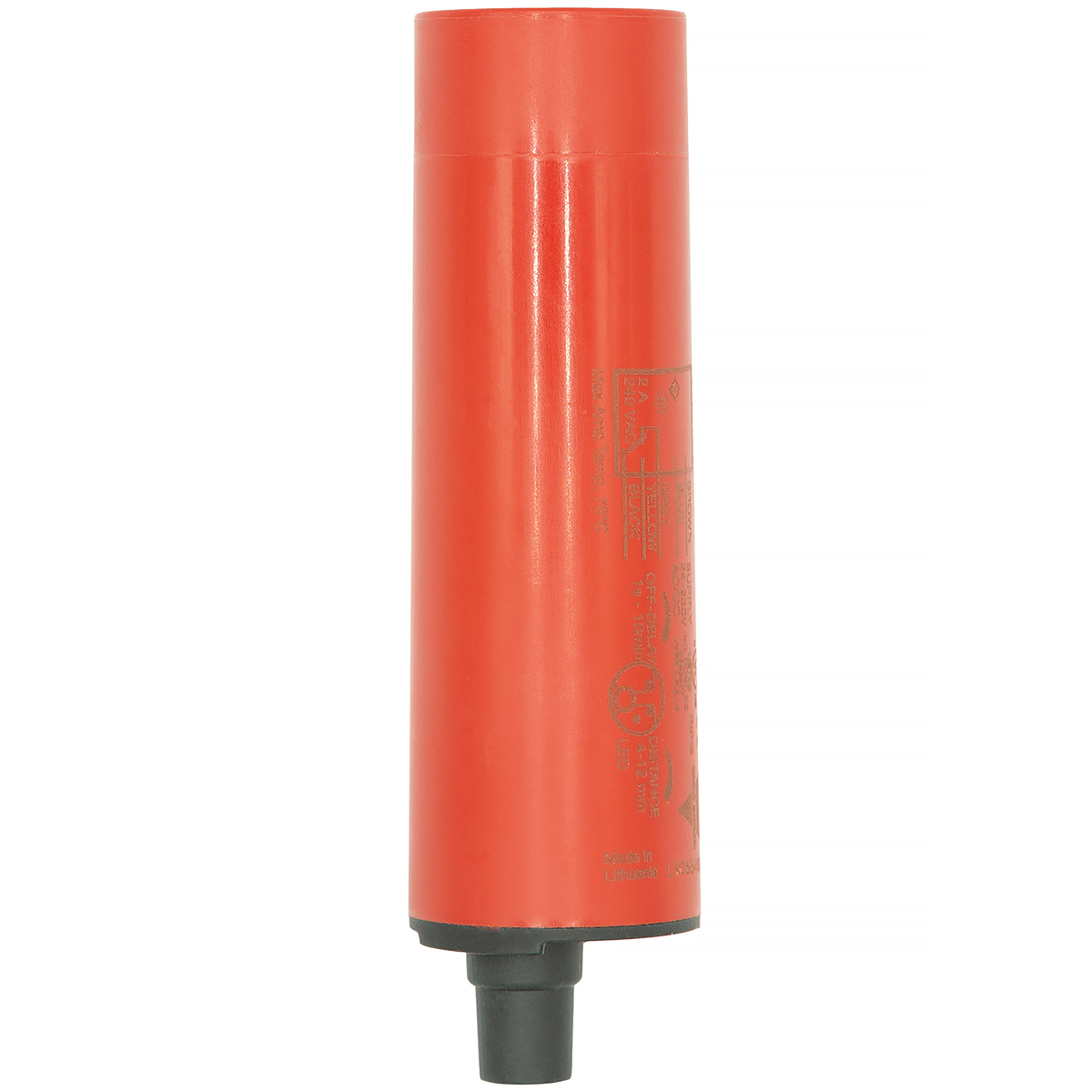

Capacitive sensor for Carlo-Gavazzi VC12RTM2410M NZ/NO flex auger with time delay

High-quality sensor mainly used in automatic poultry feeding systems. The proximity probe controls the operation of the motoredduktorów. It is possible to set any principle of operation of NZ, i.e. after detecting feed, it turns off the engine or NO, after detecting feed turns on the engine.

The universal capacitive sensor can be used to detect bulk, solid or liquid materials. On the detector there is a knob that can be used to set the distance at which it is to react from 4 to 12 mm. The offered probe also has a time delay of 1 second to 10 minutes.

The capacitive sensor has a 5-core connection cable with a length of 2m. Depending on the needs, the sensor can be used in last pipe or final feed.

• supply voltage 24-230V
• operating temperature -20^oC to +70^oC
• operating range 4-12 mm
• time delay 1s-10 min
• ip 67 protection class
