F3244

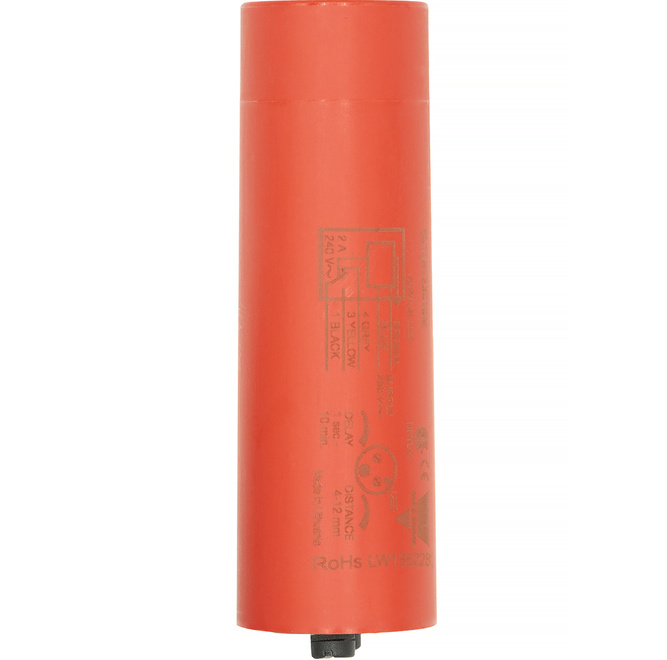

Capacitive sensor for Carlo-Gavazzi VC12RT23010M NZ/NO conveyor with time delay
€67.92
- Buy 2 for €66.72 each and save 2%
The highest quality capacitive sensor with adjustable time delay, is used feeding systems, where it manages the work of geared motors. The offered proximity sensor can work according to the no or NZ operating logic. The proximity sensor requires a 230V power supply.
The versatility of the electronic sensor allows you to control bulk materials (e.g. feed), solid materials (wood, plastic), as well as liquids. This is a very precise device - the built-in potentiometer allows you to adjust the operating zone in the range of 3 - 12 mm. The sensor is much less sensitive to high humidity, this is a very important parameter, since it has the effect of increasing the volume of feed, which interferes with the work of the sensor.
The operation of the sensor is informed by a diode placed on the housing. The presented model has a time delay function, which can be adjusted in the range of 1 sec The feed capacity sensor in the trays is enclosed in a tight sleeve with a length of 97 mm and a diameter of 32 mm. The housing is made of high quality plastic, resistant to mechanical damage, pollution and difficult conditions in livestock buildings. The triple cover provides the best protection even in the harshest conditions. There are no problems and blocking of the sensor by impurities.
Depending on the operating logic mode (NO/NZ) set on the sensor, the sensor can be mounted, among others, in the the chute pipe, which is located above the the receiver, as well as in the tray itself. It can also be installed in the end carmidle of the longitudinal line.
Basic data:- Supply voltage: 20 - 250 V
- Operating temperature: - 25oC to +80oC
- Operating zone: 3 - 12 mm
- Time delay range: 1s - 10 min.
Fast shipping
14 days for return
Over 500,000 satisfied customers
Availability
In stock
The highest quality capacitive sensor with adjustable time delay, is used feeding systems, where it manages the work of geared motors. The offered proximity sensor can work according to the no or NZ operating logic. The proximity sensor requires a 230V power supply.
The versatility of the electronic sensor allows you to control bulk materials (e.g. feed), solid materials (wood, plastic), as well as liquids. This is a very precise device - the built-in potentiometer allows you to adjust the operating zone in the range of 3 - 12 mm. The sensor is much less sensitive to high humidity, this is a very important parameter, since it has the effect of increasing the volume of feed, which interferes with the work of the sensor.
The operation of the sensor is informed by a diode placed on the housing. The presented model has a time delay function, which can be adjusted in the range of 1 sec The feed capacity sensor in the trays is enclosed in a tight sleeve with a length of 97 mm and a diameter of 32 mm. The housing is made of high quality plastic, resistant to mechanical damage, pollution and difficult conditions in livestock buildings. The triple cover provides the best protection even in the harshest conditions. There are no problems and blocking of the sensor by impurities.
Depending on the operating logic mode (NO/NZ) set on the sensor, the sensor can be mounted, among others, in the the chute pipe, which is located above the the receiver, as well as in the tray itself. It can also be installed in the end carmidle of the longitudinal line.
Basic data:- Supply voltage: 20 - 250 V
- Operating temperature: - 25oC to +80oC
- Operating zone: 3 - 12 mm
- Time delay range: 1s - 10 min.
Material:
PlasticDimensions:
średnica fi 32 mm, długość 97 mmColor:
Red, SilverVoltage:
230 VLog in to add your opinion
