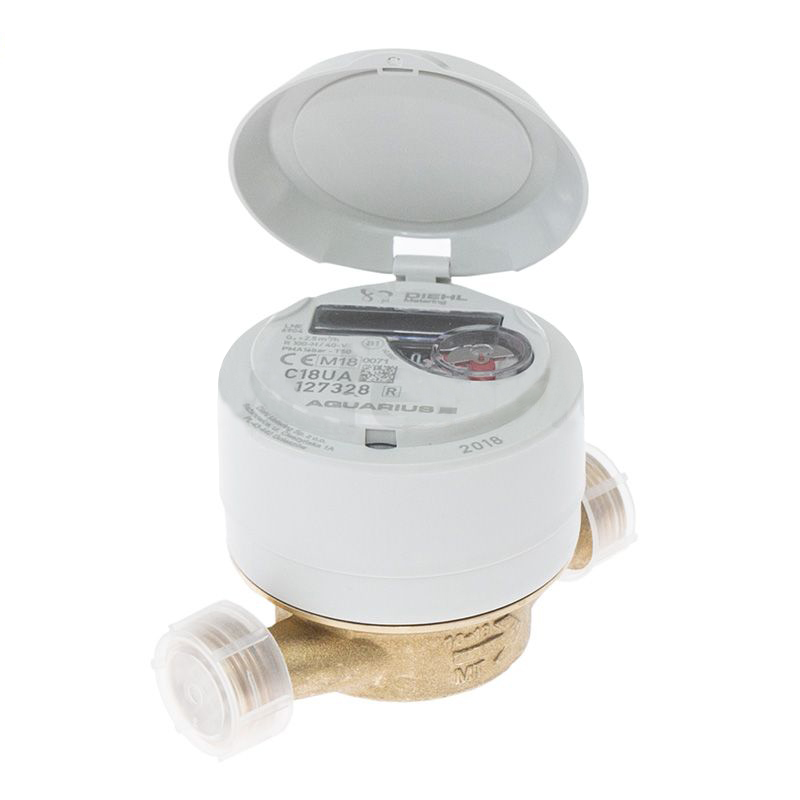

Water meter Diehl Aquarius 15/110 2,5 R100/40 LGP Ti

The Diehl Aquarius water meter is designed to precisely measure cold and hot water consumption in the temperature range from +1 to +50 ^oC and at a maximum pressure of 16 bar.

The water meter is used in particular in livestock buildings at watering systems for poultry, pigs or cattle, it is mounted in a water beam (photo No. 3). It is also used in residential houses, warehouses, social and economic buildings.

The volumetric water meter is equipped with a rotating 8-cylinder abacus, thanks to which it provides an easy and simple reading of used water, which is fed in ^m3.
Water meter for livestock buildings in its design it contains a rotor, and the flowing water sets it in a rotational motion transmitted to the abacus, which shows the indication. Brass execution of the lower part of the water meter guarantees a durable and tight connection with the water pipes. The upper casing made of high quality plastic makes the product resistant to extremely difficult conditions in livestock buildings. An important element in the construction of the presented water meter is a built-in strainer in the inlet channel, which purifies water from larger impurities just before passing through the rotor.

An important advantage of the water meter is the possibility of connecting to pulser that allows the device to be connected to other control systems. The presented function is very useful - thanks to this solution, you can fully control water consumption during animal husbandry and compare and analyze the results. In this way, any irregularities in the watering system can be detected in a very quick and easy way.

The nominal diameter of the inlet and outlet of the water meter is 3/4 inch. The continuous flowrate is 2.5 m³/h and the maximum is 3.125 m³/h.

We also offer dirical meter 1.6 m³/h.Water meters Water meters come from fresh supplies from the current year and are standard adapted for remote reading, even afterinstalling them in the installation, they can be equipped with a radio module and beadapted to the IZAR system, i.e. remote reading of water meters by radio.
