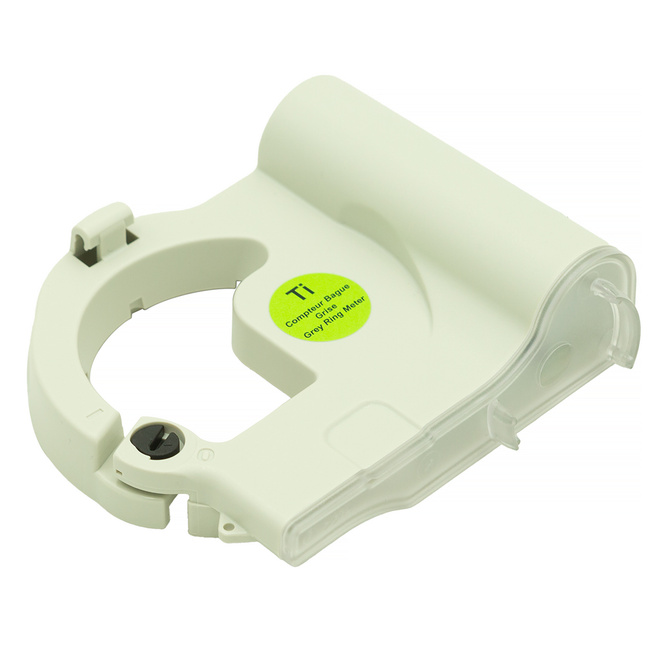

Izar R4 radio module for Diehl Aquarius and Altair water meters

Description

A water meters of Diehl Matering designed for radio reading of water consumption data. It is a modern and reliable way to collecting data from water meters.

The use of a radio module in water meters brings many benefits, which include, m.in:

eliminating mistakes made by the human factor, shortening the reading time,

reducing the cost of reading,

performing the reading during the absence of the tenant.

The radio cap is mounted and programmed onto a Diehl water meter at any time. Its advantage is a long working time of up to 15 years. Readings are possible from a distance of up to 500 m in R3 mode at a frequency of 868.95 and up to 1.5 km in R4 mode at a frequency of 868.30. The module has a 6-month data memory. It is also characterized by resistance to magnetic fields.

Parameters:

transmission type: unidirectional,

protection class: IP 68,

frequency: 868 MHz with telegram emission every 8s (R3 running system) and every 15 minutes (R4 stationary system)
