F3251

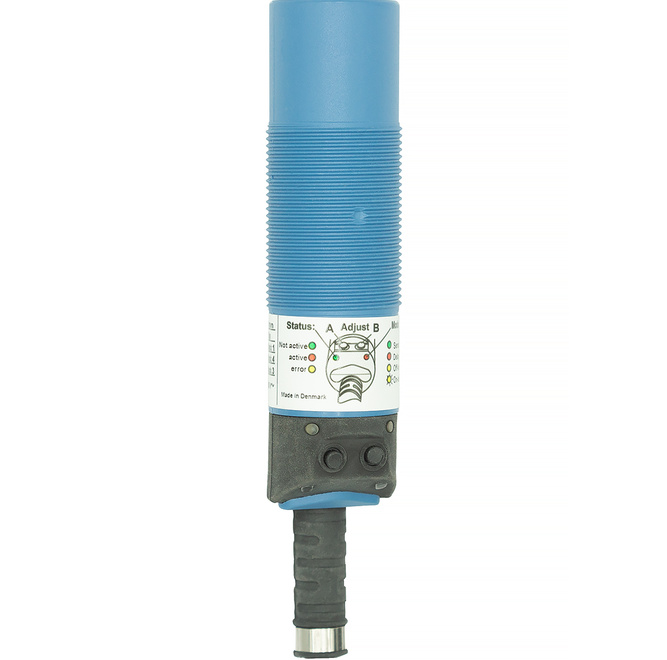

Threaded capacitive sensor for DOL 45R-G NO/NZ delayed feed pipelines
€129.03
Threaded capacitive sensor used in automatic feeding systems. The sensor is mounted in silos, tanks and feed baskets. The capacitive sensor indicates the fill level of the hopper, it can also control the operation of the devices to fill or empty the container. The offered sensor has many functions that give the ability to recognize various bulk materials. The capacitive sensor offered can act as a normally open (NO) or normally closed (NZ) system. The proximity sensor has a delayed operation function.
The housing of the DOL 45 R-G sensor is made of high quality plastic. The design of the sensor guarantees that it is waterproof and dustproof All electronic components are built-in, so that any vibrations and impacts do not affect the functioning of the sensor. The device has the shape of a threaded sleeve and has two nuts for easy mounting.
If the sensor is activated, the countdown of the delay after which the relay will turn on begins. The sensitivity and length of the delay can be adjusted using two switches. On the sensor there is an LED indicating when the switches are activated.
The manufacturer of the offered sensor is the renowned SKOV company, one of the leaders in the field of automation solutions for the agricultural industry. The sensor has a 5-core connection cable with a length of 150 cm. The DOL 45 R-G sensor requires an external power supply of 230 V to operate.
Basic data:- Supply voltage: 90 - 250V
- Operating temperature: -20oC to +70oC
- Power consumption: 2 VA
- Frequency: 50-60Hz
- Resistance class: IP67
Fast shipping
14 days for return
Over 500,000 satisfied customers
Availability
In stock
Threaded capacitive sensor used in automatic feeding systems. The sensor is mounted in silos, tanks and feed baskets. The capacitive sensor indicates the fill level of the hopper, it can also control the operation of the devices to fill or empty the container. The offered sensor has many functions that give the ability to recognize various bulk materials. The capacitive sensor offered can act as a normally open (NO) or normally closed (NZ) system. The proximity sensor has a delayed operation function.
The housing of the DOL 45 R-G sensor is made of high quality plastic. The design of the sensor guarantees that it is waterproof and dustproof All electronic components are built-in, so that any vibrations and impacts do not affect the functioning of the sensor. The device has the shape of a threaded sleeve and has two nuts for easy mounting.
If the sensor is activated, the countdown of the delay after which the relay will turn on begins. The sensitivity and length of the delay can be adjusted using two switches. On the sensor there is an LED indicating when the switches are activated.
The manufacturer of the offered sensor is the renowned SKOV company, one of the leaders in the field of automation solutions for the agricultural industry. The sensor has a 5-core connection cable with a length of 150 cm. The DOL 45 R-G sensor requires an external power supply of 230 V to operate.
Basic data:- Supply voltage: 90 - 250V
- Operating temperature: -20oC to +70oC
- Power consumption: 2 VA
- Frequency: 50-60Hz
- Resistance class: IP67
Material:
PlasticDimensions:
długość: 110 mm, średnica 30 mm
przewód 5-żyłowy 0,75 mm2, długość przewodu: 1,5 m, średnica przewodu: 9 mmColor:
Blue, BlackVoltage:
230 VLog in to add your opinion
