Nipple drinker for turkeys

Description

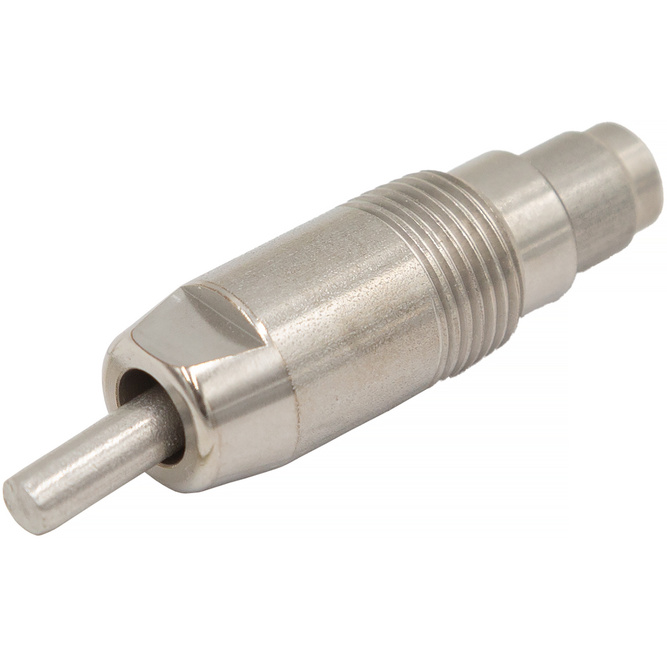

The bottle for turkey watering systems.
The pacifier is mounted in PVC pipe with dimensions of 28x28mm. Nipiel is equipped with a thread with a diameter of 11 mm, which must be screwed into the holes made in the pipe.

The droplet drinker is characterized by very high efficiency and is able to handle up to 30 pcs. adult turkeys and up to 20 pcs. adult indores.

With optimal water pressure at the level of approx. 25-30cm of the water column, nipel achieves a throughput of the following orders:

230-280cm3 of water/min when pressing nipla vertically
160-200cm3/min when moving the mandrel to the sides.

Due to the high water throughput, the nipple for the watering system should be used in tandem with wide eaves bowls that will prevent water from spilling. Dedicated to the pacifierthe pendulum, in turn, will make it easier for birds to take up water. They will not have to drink directly from the nipla, it is enough for them to move the pendulum and the water will flow into the bowl.

Nipel is entirely made of the highest quality stainless steel, resistant to corrosion, water and other difficult conditions in the hen house.

Parameters
