Mounting spiral holder fi 37 mm on shaft fi 19 mm

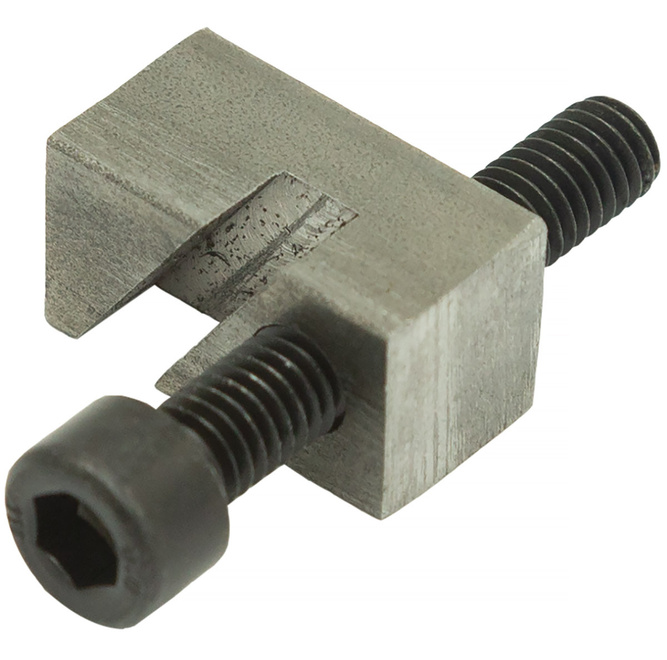

Solid handle for spirali fi 37 mm used in automatic feeding systems. The spiral mounting consists of a holding element with a groove and a screw with which the handle is attached to the shaft. The holder is designed for mounting the spiral on the shaft fi 19 mm gearbox motoreduktor from the longitudinal line.

The handle is mounted by translating the screw through the hole on the shaft and screwed into a threaded hole in the handle. This fastening guarantees stable attachment of the spiral to the shaft. The holder is made of steel and has dimensions of 12x12x23 mm. The set also includes a screw fi 6 mm screwed in with an Allen wrench.
