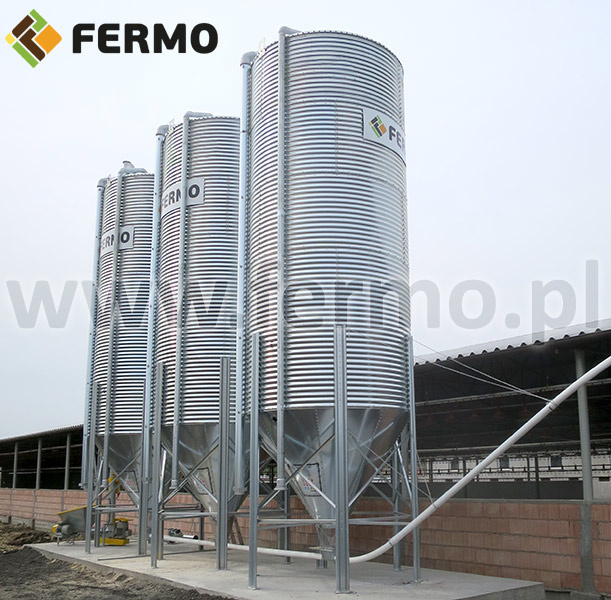

Galvanized feed silo 14 tons

Corrugated sheet feed silo with a capacity of 14 tons is intended for larger poultry or pig farms as a storage tank for feed or granules.

Silos for livestock buildings are an excellent solution for livestock breeders, because together with the feeder they form a fully mechanized feeding system. By providing constant access of feed from the offered steel tanks and the appropriate microclimate through the ventilation, you can achieve very good results of animal growth in an extremely short time.

Steel silos have an angled loading pipe that allows the silo to be filled by the shortest possible route - which significantly speeds up the entire storage process, including loading and unloading.

The silo for granules and feed has all the necessary elements of equipment for its proper functioning, and these are:

• inspection hatch in the silo hopper,
• aluminum fire quick connector for fodder wagon,
• loading pipe 100 mm with vent pipe 160 mm,
• standard hole 44 cm at the end of the hopper under the feed pipeline,
• durable Legs in the shape of Omega,
• inspection windows for assessing the level of feed,

Important information:

• Diameter: 2,3 m
• Height: 7,5 m
• Number of legs: 4
• Foundation: 2.75 x 2.72 x 40 cm

Feed silos 14 t require a building permit (height below 7 m only for notification)

Each silo can be additionally equipped with the following elements:

• ladder + manhole in the roof + protective jacket,
• bagg for manual feed collection
• bolt at the end of the hopper
• Big Dutchman basket adapter (adapter)
• manhole in the roof (without ladder)
• feed hanging cartridge
• additional feed level windows
