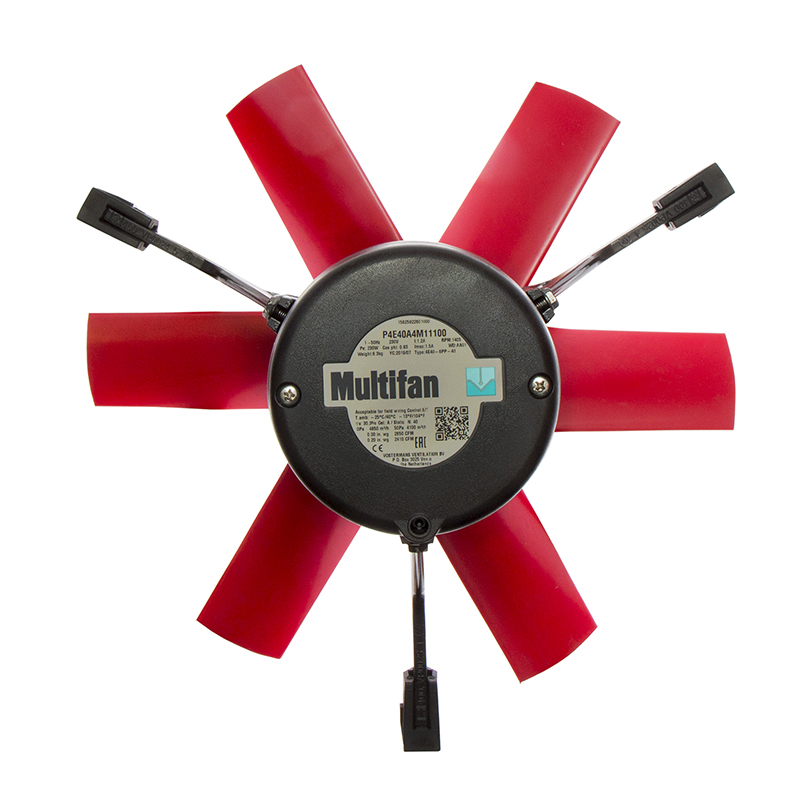

Tube mounting fan MultiFan fi 35 cm for livestock buildings P4E35A0M11100 - 230V

The ventilation used should meet the requirements of the production profile as much as possible. Multifan chimney fans used both in pig houses, fattening houses, barns and poultry farms. However, they are mounted in ventilation chimneys, to which they are factory-fitted according to the diameters of the holes.Offered air absorbers (diameters from 30 to 130 cm) together with fans and szczytowe create a ventilation system that can be monitored and set automatically using climate drivers.

The presented single-phase fan fi 35 cm for livestock buildings provides access to fresh air, which is sucked in from the ventilation inlets, while creating air exchange inside the room.The size of the diameter of the Multifan chimney fan depends primarily on the previously designed ventilation system, which is influenced by the following factors:

• external atmosphere (temperature, wind, humidity),
• locating the building in the field,
• the area and specifications of the building and the materials from which it is constructed, including the nature of the structure of the building,
• the number and type of animals in the livestock building,

The proposed fan for chimney openings fi 35 mm is made of a mixture of nylon and polypropylene. The mounting frame, motor housing and supports are made of aluminum. All presented elements of the fan are characterized by resistance to high temperatures (up to 155 degrees Celsius) and the effects of a harmful microclimate prevailing inside the rooms.

Parameters:

• Model: P4E35
• Power: 170W
• Air capacity [m3/h]: 3530
• Power supply: 230 V
