F4624

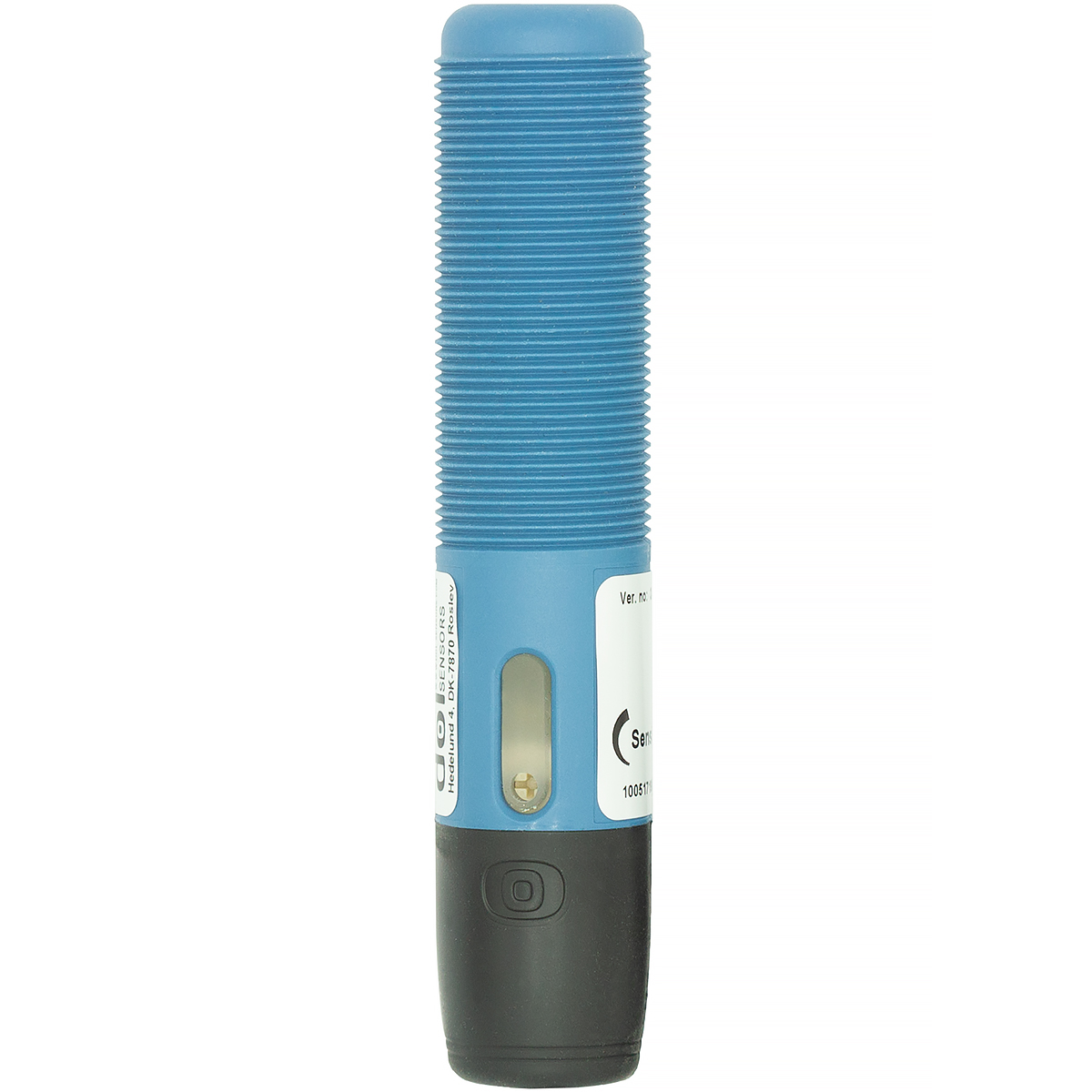

Capacitive sensor 18 mm DOL 26 CA-P-M18-NF-CA-SCR-M-1T NO
€112.71
High quality DOL proximity sensor used in automatic poultry feeding systems. The offered sensor is designed for installation in a hopper. It has a connection to a two-core cable and does not require additional power supply.
The feed detector has an LED that signals the operation of the device. It is possible to adjust the operating range from 0 to 12 mm. Capacitive NO sensor (normally open) when the feed is detected, the engine starts.
Included with the capacitive sensor are two nuts for easy installation and a screwdriver to adjust the sensitivity of the sensor.
Parameters of the DOL 26 CA-P-M18-NF-CA-SCR-M-1T NO sensor:- Supply voltage: 20-280V
- Operating temperature: -20oC to +70oC
- Rated current: 500mA
- Frequency: 47-63Hz
- The principle of operation of the NO sensor: when the material is detected, it turns on the engine
Fast shipping
14 days for return
Over 500,000 satisfied customers
Availability
In stock
High quality DOL proximity sensor used in automatic poultry feeding systems. The offered sensor is designed for installation in a hopper. It has a connection to a two-core cable and does not require additional power supply.
The feed detector has an LED that signals the operation of the device. It is possible to adjust the operating range from 0 to 12 mm. Capacitive NO sensor (normally open) when the feed is detected, the engine starts.
Included with the capacitive sensor are two nuts for easy installation and a screwdriver to adjust the sensitivity of the sensor.
Parameters of the DOL 26 CA-P-M18-NF-CA-SCR-M-1T NO sensor:- Supply voltage: 20-280V
- Operating temperature: -20oC to +70oC
- Rated current: 500mA
- Frequency: 47-63Hz
- The principle of operation of the NO sensor: when the material is detected, it turns on the engine
Dimensions:
średnica: 18 mmdługość: 89 mm
