30mm DOL CAPACITIVE Sensor CA-P-M30-NF-CA-SCR-B-2T NZ Time Delay
Description

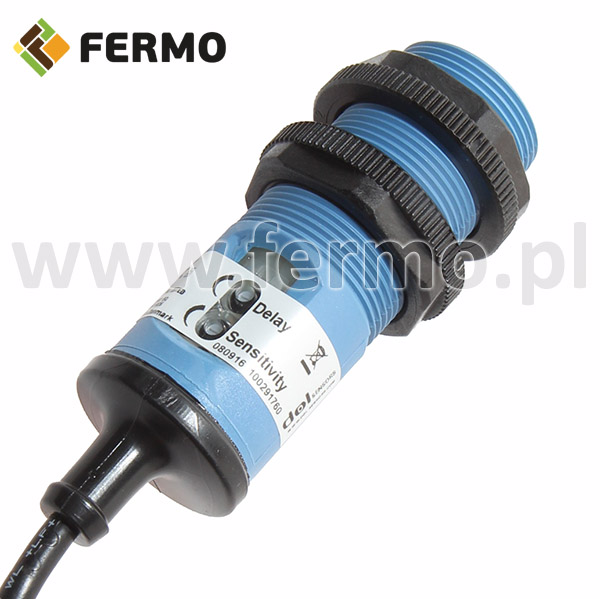

Top-of-the-line DOL Sensors capacitive sensor for detecting bulk materials. The sensor is mainly designed to control the transverse line in automatic feeding systems. Offered the NZ sensor shuts down the engine when it is covered with feed. The sensor has the ability to set the time delay in the range of 0-600 seconds. Adjustment is made using a knob located on the housing. The operating range can also be set in the sensor.
The diameter of the sensor is 30 mm. The housing is threaded in the set there are also two also 2 nuts for mounting. The sensor is mounted in the last drain pipe at the control unit. The device controls transverse line. The sensor has a two-core connection cable and no need to supply additional power supply.
Basic parameters of the device:- sensor diameter: 30 mm
- overall length: 101 mm
- enclosure tightness: IP67
- power supply: 90 - 250V AC
- maximum load: 300 mA
- frequency: 50 - 60 Hz
- operating temperature: -20 to +70 oC
Parameters
| Manufacturer | DOL |
|---|---|
| Dimensions | średnica 30 mm, długość 101 m, długość przewodu 2m |
