Capacitive Sensor 18mm NO For Feeding System Hopper
Description
Professional capacitive sensor for installation in inseparents of the longitudinal line of the feeding system. The capacitive sensor reacts to the approach of both loose materials - feed, solid (wood type, plastic) and liquid. In automatic feed systems, the sensor is m.in responsible for controlling the operation of the motor in the transverse lines of the feeding system.
The range from the sensor can be set in the range from 0 mm to 15 mm with a special potentiometer located in the side part of the siren (photo no. 2). The capacitive sensor reacts when the feed approaches the front of the longitudinal line housing of the feeding system. The operation of the sensor is indicated by an LED.

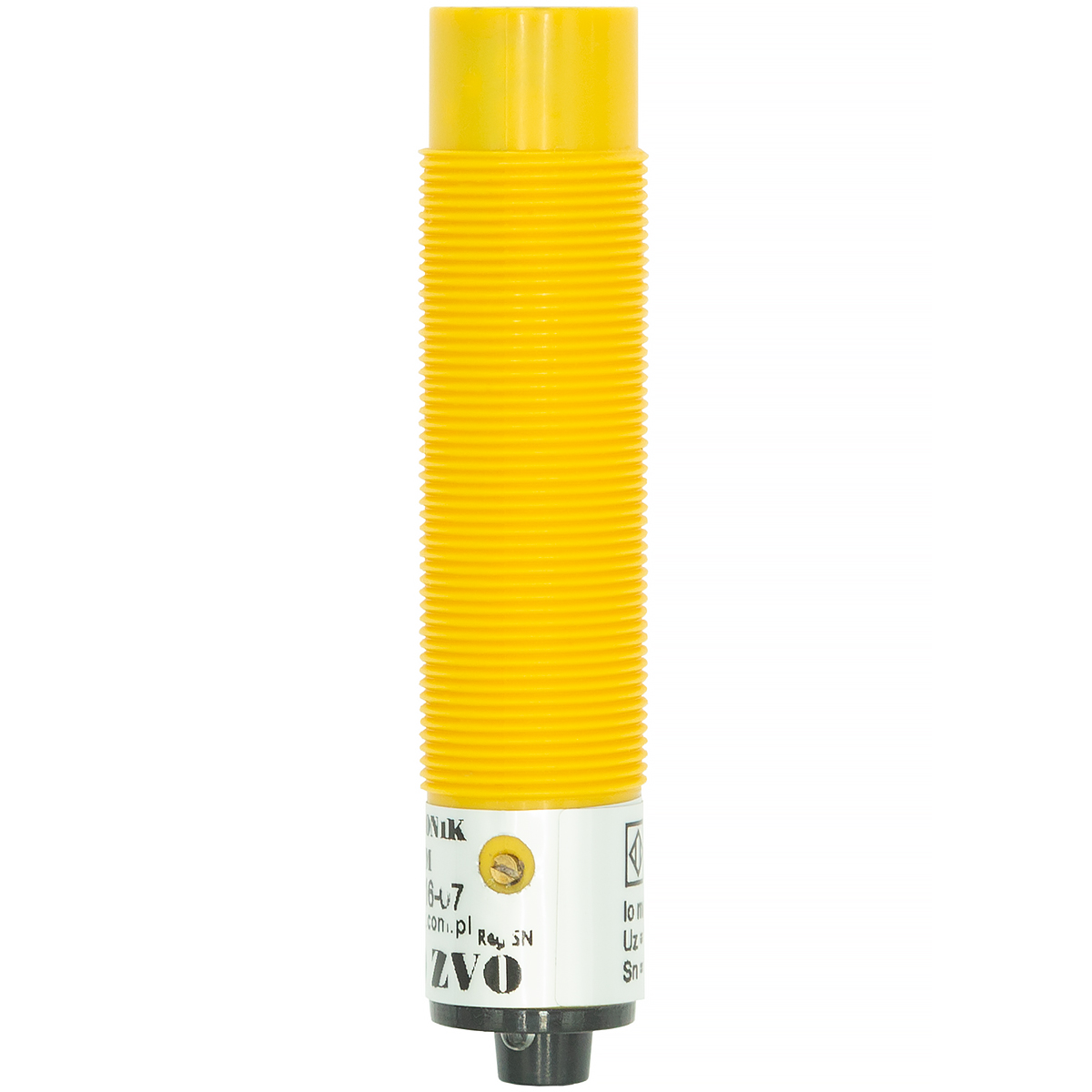

The 18 mm capacitive sensor (normally open) is made of a plastic housing in the form of a threaded sleeve. For ease of installation, it is also equipped with two strong nuts ensuring the stability of the installation and the correct operation of the sensor to the feed hopper.
Basic data:- Supply voltage: 90 - 250 V
- Operating temperature: -25oC to +70oC
- Operating zone: 0 - 10 mm
Parameters
| Material | Plastic |
|---|---|
| Dimensions | średnica 18 mm, długość 7,5 cm, długość kabla podłączeniowego: 2 m |
| Color | Blue, Black |
| Voltage | 230 V |
