F1342

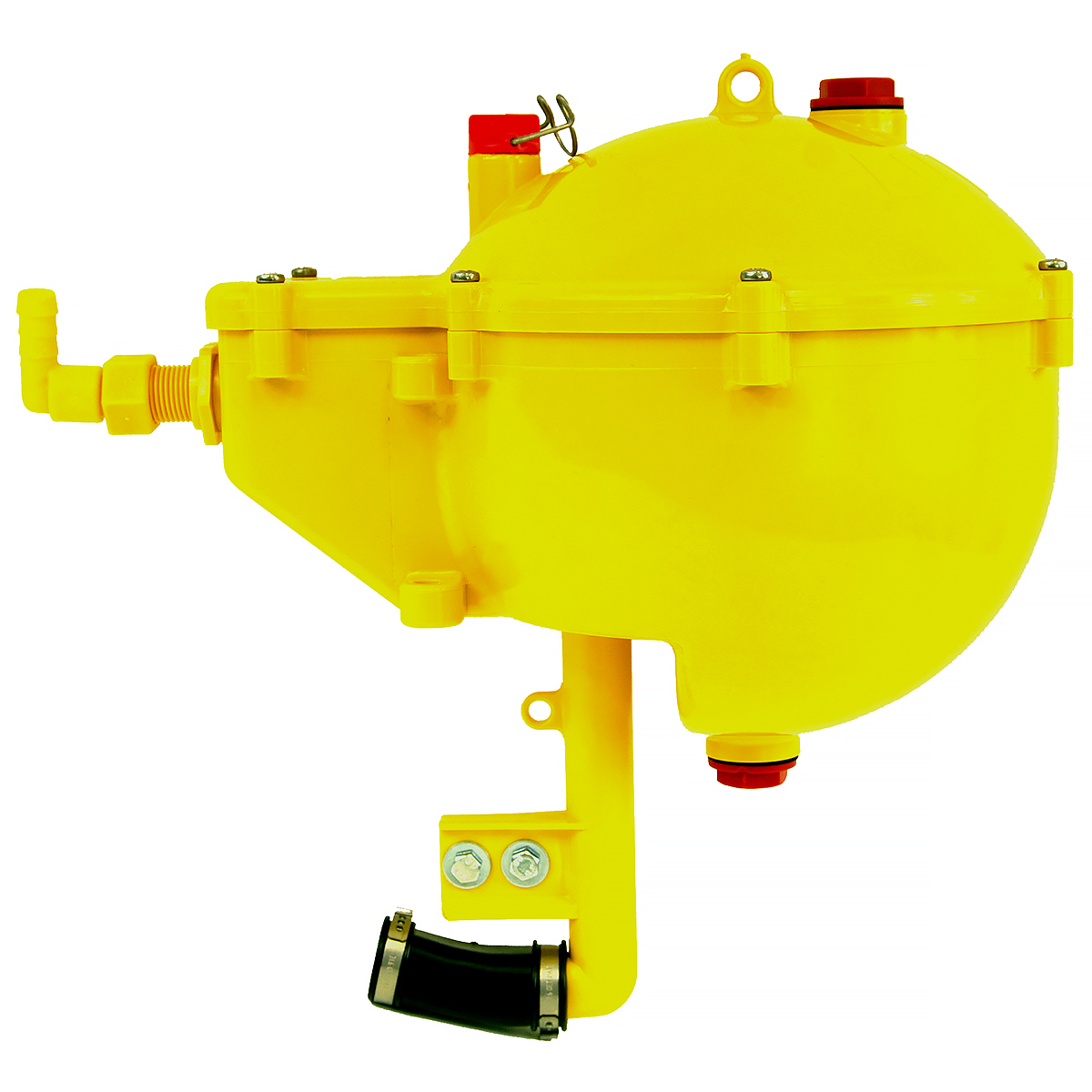

Water pressure reducer LUBING drinking systems



€88.02
The tank reducer manufactured by a German company maintains a constant pressure at the output of 20 cm in height of the water column. Watering systems for poultry, rabbits or other animals work at low pressure. This solution facilitates the operation of the system and protects the livestock building from flooding in the event of a failure.

However, due to fluctuations in water pressure in the water supply network, it is necessary to connect this reducer to the system, which eliminates the adverse impact of these fluctuations. This ensures that the watering system will work properly and reliably. In addition, the reducer has a flush function, which consists in flushing the watering line. At the moment when we connect the 1/2 inch hose to the water source and turn a special key, the system will automatically remove impurities.

The offered product is ready to be connected to the watering system (it is possible to connect the pressure reducer directly from the tap) - it contains all the necessary connections and hooks. Equipped device is in the following elements:
- hook for hanging and mounting a round or triangular profile (anti-groove)
- hook for anti-rust
wire- input with 1 inch thread (with cap for connection under a 1/2 inch hose)
- output with rubber for square pipe 22x22 mm for watering
systems- two inspection holes to flush the hopper.

Installation and operation of the device is very simple, thanks to the well-thought-out construction and equipment of the reducer.

Basic parameters of the pressure reducer:
- input pressure: max 3 bar
- pressure at the output: constant 20cm water column
- input connection: 3/4 inch or 1/2 inch hose - possibility of reduction and other connections
- output: for square pipe 22x22 mm for watering
systems

The product is covered by a one-year warranty. Made of high quality plastic, it is resistant to mechanical damage and easy to disinfect.
remark! With a direct connection to the water supply network, it is necessary to use filter, in order to protect against impurities that may interfere with the proper operation of the device.

Fast shipping

14 days
for return

Over 500,000
satisfied customers

Availability
In stock
The tank reducer manufactured by a German company maintains a constant pressure at the output of 20 cm in height of the water column. Watering systems for poultry, rabbits or other animals work at low pressure. This solution facilitates the operation of the system and protects the livestock building from flooding in the event of a failure.

However, due to fluctuations in water pressure in the water supply network, it is necessary to connect this reducer to the system, which eliminates the adverse impact of these fluctuations. This ensures that the watering system will work properly and reliably. In addition, the reducer has a flush function, which consists in flushing the watering line. At the moment when we connect the 1/2 inch hose to the water source and turn a special key, the system will automatically remove impurities.

The offered product is ready to be connected to the watering system (it is possible to connect the pressure reducer directly from the tap) - it contains all the necessary connections and hooks. Equipped device is in the following elements:
- hook for hanging and mounting a round or triangular profile (anti-groove)
- hook for anti-rust
wire- input with 1 inch thread (with cap for connection under a 1/2 inch hose)
- output with rubber for square pipe 22x22 mm for watering
systems- two inspection holes to flush the hopper.

Installation and operation of the device is very simple, thanks to the well-thought-out construction and equipment of the reducer.

Basic parameters of the pressure reducer:
- input pressure: max 3 bar
- pressure at the output: constant 20cm water column
- input connection: 3/4 inch or 1/2 inch hose - possibility of reduction and other connections
- output: for square pipe 22x22 mm for watering
systems

The product is covered by a one-year warranty. Made of high quality plastic, it is resistant to mechanical damage and easy to disinfect.
remark! With a direct connection to the water supply network, it is necessary to use filter, in order to protect against impurities that may interfere with the proper operation of the device.

Application:
Poultry
Material:
Plastic
Dimensions:
Długość całkowita urzadzenia: 35 cm
Szerokość zbiornika: 25 cm
Color:
Yellow
