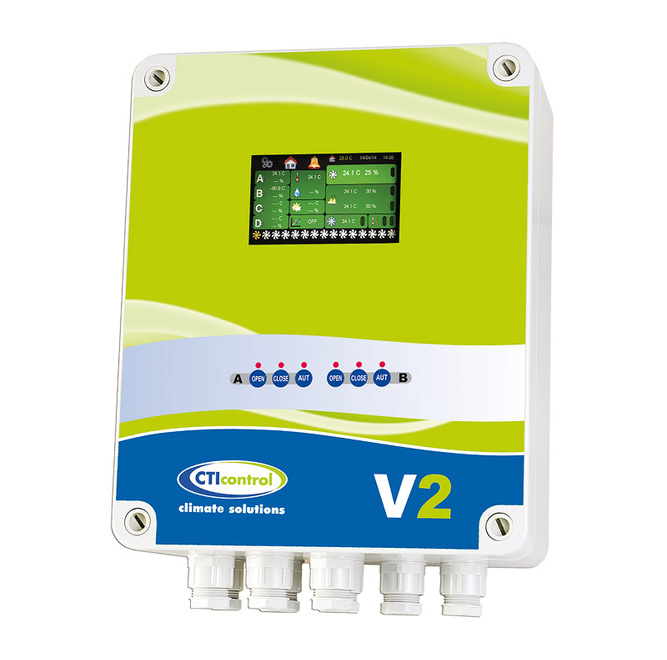

V2 production computer with curves, statistics, vacuum, CO2 and ammonia measurement, poultry and silo scales

Professional V2 production computer dedicated to poultry farm management. The controller allows you to manage the climate in the hen house and the dosage of water or feed. It is also possible to control the weight gains of animals. The computer collects data from the course of the breeding process and creates extensive statistics.

The production computer allows you to automate the entire poultry breeding process. It has the functions of ventilation control, temperature control, humidity, CO₂, ammonia. A scale can be connected to the controller to control animal weight gain and a silo scale that informs about feed consumption and the current stock level.

The V2 production computer has a clear display that allows you to operate the farm management system. The controller can be connected remotely using the CT1 communication center.

Main features:
• support for 2 groups of air inlets
• 3 types of ventilation: static, dynamic, mixed
• 8 levels of ventilation
• possibility of temporary programming of ventilation and cooling
• minimum and maximum temperature alarms
• control of temperature, humidity, statistical pressure, CO₂, ammonia, water and feed consumption
• control of the level of feed in the silo
• control of animal weight gain
• breeding management based on curves and statistics
• remote access to the computer

Inputs:
• 6 temperature sensors (3 included)
• 3 humidity sensors (not included)
• 1 CO₂ sensor (not included)
• 1 NH3 ammonia sensor (not included)
• 1 anemometer (not included)
• 2 analog inputs 0-10 V
• 4 digital inputs

Output:
• 12 relays
• 4 analog outputs 0-10 V
• 2 outputs for single / three-phase motor

Parameters:
• Model: V2
• power supply 230 V
• enclosure protection class IP 55
• dimensions 286x120x340 mm
