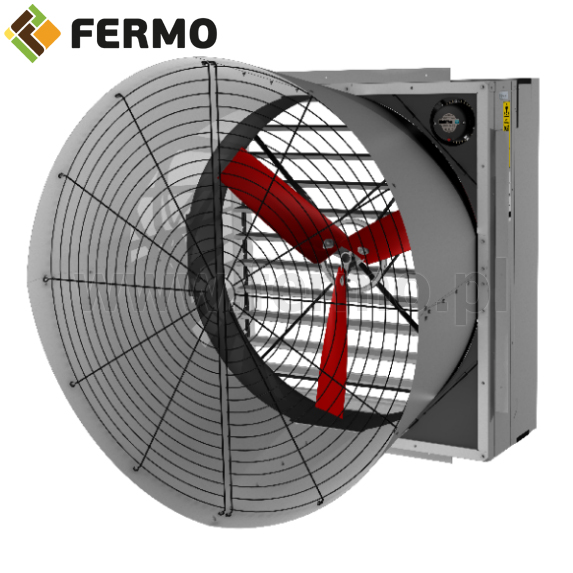

Multifan 130 top fan with blind, grille and diffuser 1.5 kW

Efficient peak fan with diffuser for livestock buildings. The offered Multifan fan is designed for use in such facilities as poultry farms, pig houses or barns.

The fan with diffuser has a much higher efficiency than ordinary peak fans and is at the level of 47500m³ / h at a pressure of 0 Pa.The peak fan is powered by a 1.5 kW motor, has a gravity blind that opens under the influence of air thrust. At the front, a recoil has been installed to increase efficiency and a grille to prevent animals from getting into the fan blades.

All elements of the fan are made of high quality materials and adapted to work in difficult conditions that prevail in livestock rooms.

Parameters:
• Power supply: 400 V
• power: 1500 W
• revolutions: 570 rpm.
• Capacity at 0 Pa: 47500m³/h
• Capacity at 50 Pa: 37400m³/h
• Operating temperature: -25...40 ^oC
• protection class IP 55
• Weight: 89,2 kg
• Dimensions: 138x138x127 cm

NOTE: Bulky goods sent on a pallet. The shipping cost is determined individually after placing the order. In order to calculate the approximate cost of transport, please contact: sklep@en.fermo.pl
