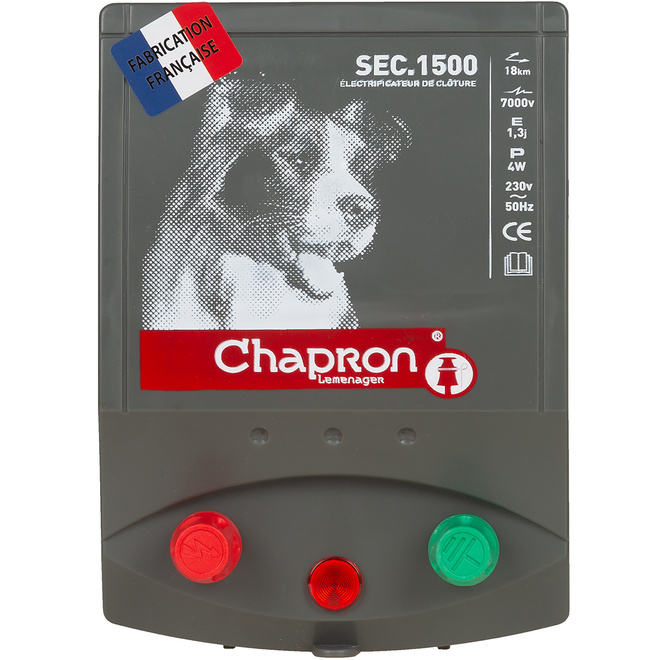

Mains energizer Chapron sec. 1500 B

The Energizer produced by the French company CHAPRON was designed specifically for electric fences for pets, mainly dogs, to protect the reserved areas of the yard. Designed for short and medium-sized pens - up to a maximum of 18 km.

The device generates electrical impulses every 1 second - about 50-55 pulses per minute. Their frequency is indicated by the indicator light. Maximum energy of the energizer pulse sec. 1500 is 1600mJ. It has been selected so that the animal feels respect for the fence, while not harming it.

The plastic housing protects the entire system from damage. The device should be placed outside the livestock building under a canopy to protect it from rain. Installation is not difficult or laborious, because the Energizer has the ability to mount on the wall. In addition, there is a special handle-hanger on the equipment.

The device connects to a 230V mains. The energy consumption of the above Energizer is minimal - approx. 4 W. The product is coupled with grounding and wires of the fence line.

Basic parameters of the device:

• Supply voltage: 230V/50Hz
• Built-in surge protection system above 260V
• Input power: 4 W
• - Idle voltage: 7000 V
• Maximum pulse energy: 1600mJ
• Maximum discharge energy (averaged): 1300mJ (indicated on the housing)
• - Fence length: 18 km

It is recommended to turn off the Energizer during a storm.
The product manufactured in France has been covered by a warranty of 36 months.
The device complies with the required European Union (CE) standards.
