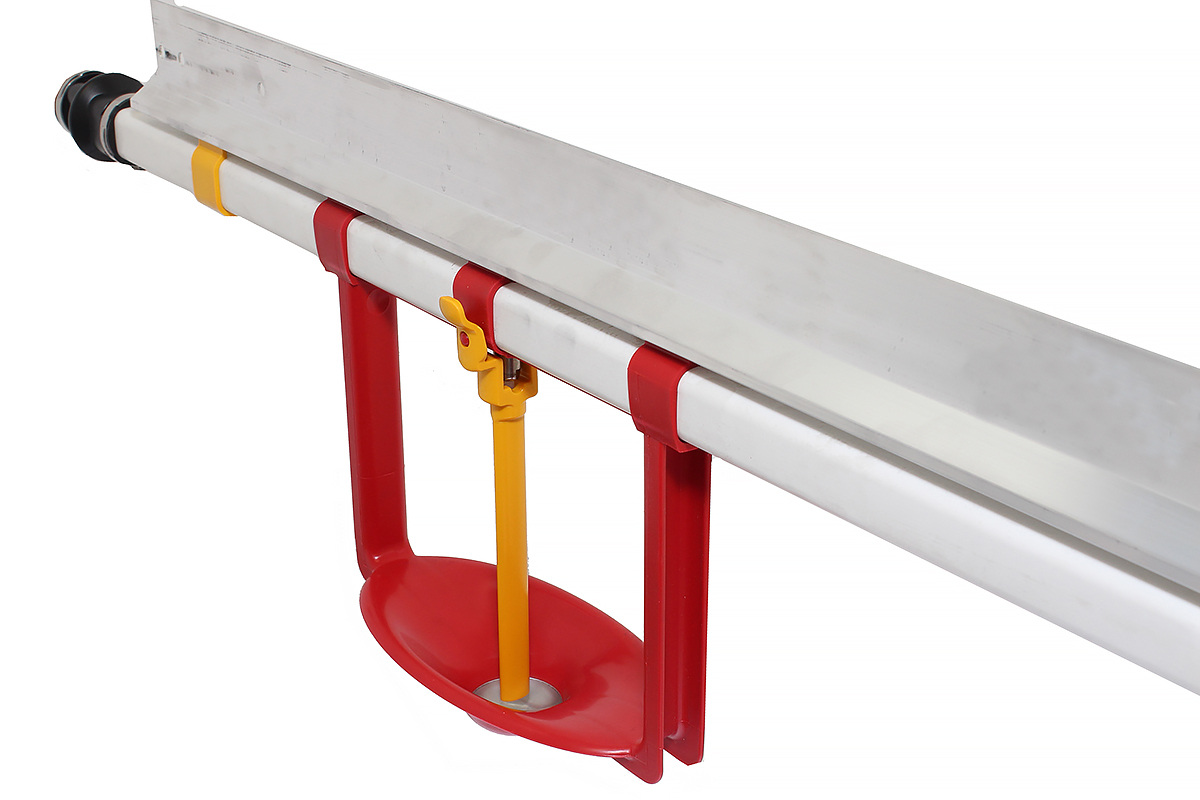

Line of the drinking system for turkeys 4 drinkers with narrow cups - 3 m long

A complete line of watering system for turkeys equipped with 4 drinkers with narrow water hood cups, is dedicated to the rearing of turkeys and indores and fattening turkeys.

The automatic turkey watering system has a length of 3m and consists of:

3m PVC square pipe 28x28mm

3m aluminum support strip with square tube mounts

1 connector for support strips

1 rubber with cable ties

4 droplet drinkers for turkeys MegaDrnik - LB8

4 nipla pendulum extenders for young turkeys

4 narrow eaves bowls for turkeys.

From the next 3m sections of the turkey watering kit, very long water supply systems can be built with lengths reaching even:

up to 60m when using pressure regulator at the beginning of the entire line

up to 120m in length when placing the regulator in the middle of the line (60m on the right and left side of the regulator).

MoDrink turkey droplets ensure the right amount of water is provided for such large birds as turkeys. One drinker is able to supply water to 40 pcs. of young birds and max. up to 20 pcs. of large turkeys.Additional pendulum extenders guarantee access to water for very young turkeys that are not yet able to reach the nipla itself. Moving the pendulum, an influx of water into the bowl is triggered.

Eaves cups are made of strong solid material, resistant to the weight and strength of turkeys. The bottom is additionally reinforced with a steel bowl, which protects and protects against abrasion or cracking from drinking birds. The cups can be further enlarged using a special set that increases capacity and prevents water splashing into the litter.
Capacity expansion kit for narrow bowls for turkeys

The entire turkey poiling line is reinforced by a special aluminum profile that protects the watering line from damage from heavy turkeys. In addition, a special a mounting kit for an electric wire, which will protect so that birds do not jump on the wires of the watering line for turkeys, can be installed on the slats.
Electric wire mounting kit for watering systems

Important! Due to the non-standard dimensions of the offered watering line, when ordering a quantity of less than 10 pieces, the amount per shipment may increase.
