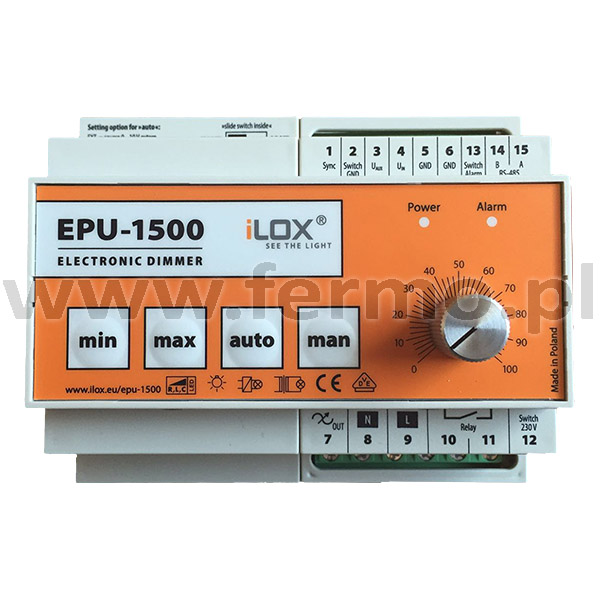

Lighting regulator electronic dimmer EPU-1500

F3658
€324.39
Qty
Discount
Net
Gross
2 pcs.
-3%
In stock
*.
Low shipping costs.
14-days Returns
Description

Universal lighting controller. An electronic lighting dimmer based on a transistor actuator gives the user the opportunity to use the device at many types of load::

  • LED lighting
  • energy-saving lighting
  • ordinary standard lighting

Electronic universal controller control over the lighting. With this device, you can set the minimum or maximum illumination of lighting. An additional advantage of the electronic lighting controller is the function of controlling an external analog signal 0-10V coming from e.g. fermo climate controller FT-40, F-Pro 2 or F-Pro 4 which gives the possibility of setting the lighting in direct proportion to sunrises and sunsets.

Installation of the electronic lighting regulator is easy and fast, and its operation is 100% intuitive.

Technical specification:
  • Supply voltage: 230 VAC (+/- 10 % max.) sinusoidal, 50/60 Hz, 1-phase+neutral
  • Pre-protection: 16 A max.
  • Power consumption: 2.5 W Heat loss: 5.35 W
  • Operating temperature: -10°C to +45°C
  • Wire cross-sections: 0,75 to 2,5 mm2
  • Enclosure protection class: IP 20
  • Mounting method: for DIN-35mm rail
  • Compliance with standards: EN 60669-1, EN 60669-2-1, EN 55015
  • Button input: 230 VAC, possibility of connecting backlit buttons (= Terminal 12) (=5 mA max.), max. cable length 50 m. ,
  • Signal input 0-10 VDC: 1.5 mA, possibility to connect a potentiometer
  • Relay contact: 250 VAC/30 VDC - 4 A max.
  • Alarm output: N-MOSFET; OD (open drain); 12/24 VDC-200 mA max.
