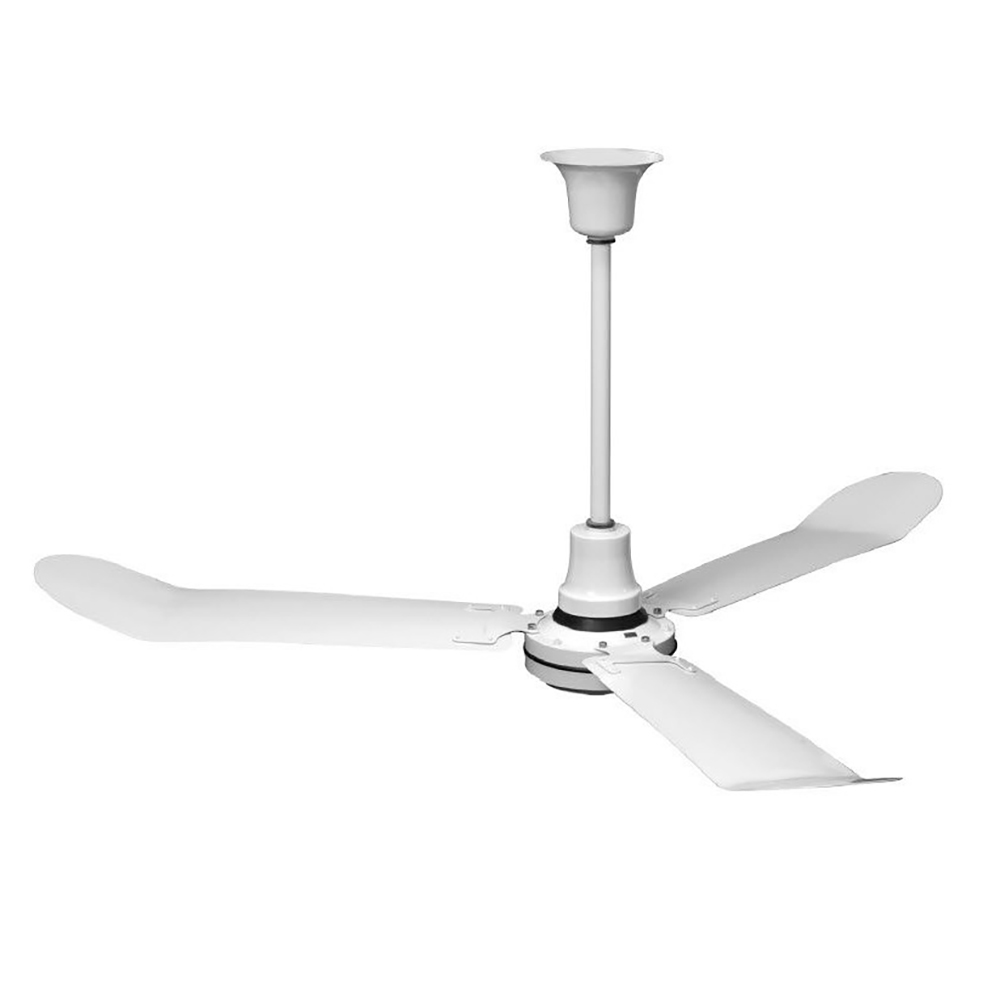

Horizontal air mixer fan for MultiFan barns - PV600

The presented Multifan ceiling fan for livestock buildings is designed to conduct air exchange during warm and cold periods. In summer, it greatly contributes to creating mild cold and causing faster evaporation of hot air forming between animals in the room. In winter, however, it acts as a support for the heating system, because it moves the warm air floating under the ceiling downwards, thanks to which it greatly reduces heat loss and heating costs. The wide ventilation blades used ensure that mixed air reaches even all corners of the room, eliminating cold corners.

Horizontal air mixer fi 140 cm is used especially in barns, where it is very important in intensive production of dairy cows, because in summer periods too high temperature (above 25°C), the amount of milk produced may decrease significantly. In the natural production of poultry and pigs can be the first step towards semi-automatic ventilation. In addition, this device can perfectly harmonize with other elements of the ventilation system that are installed in livestock buildings.

The energy-saving MultiFan ceiling fan is very cheap to operate because it uses a minimum of energy (90 W), while achieving a high efficiency of up to 21250 m3/h. Another of the cost-saving advantages of the ceiling air mixer is the payback time, because it occurs relatively quickly, paying special attention to a significant improvement in animal performance, thanks to the uniform distribution of heat and the reduction of heat pressure on the livestock. The offered mixer also reduces the appearance of water vapor on the ceiling and contributes to the drying of litter and floors.

MultiFan ceiling fan specifications:Parameters:

• Model: PV600
• Max Power Consumption (W): 90
• Air capacity [m3/h]: 21250
• Power supply (V) - 230
• Volume (dB) -42
• Max rpm - 275
• Suspension handle length: adjustable in the range of max. 50 cm / min. 15.24 cm
