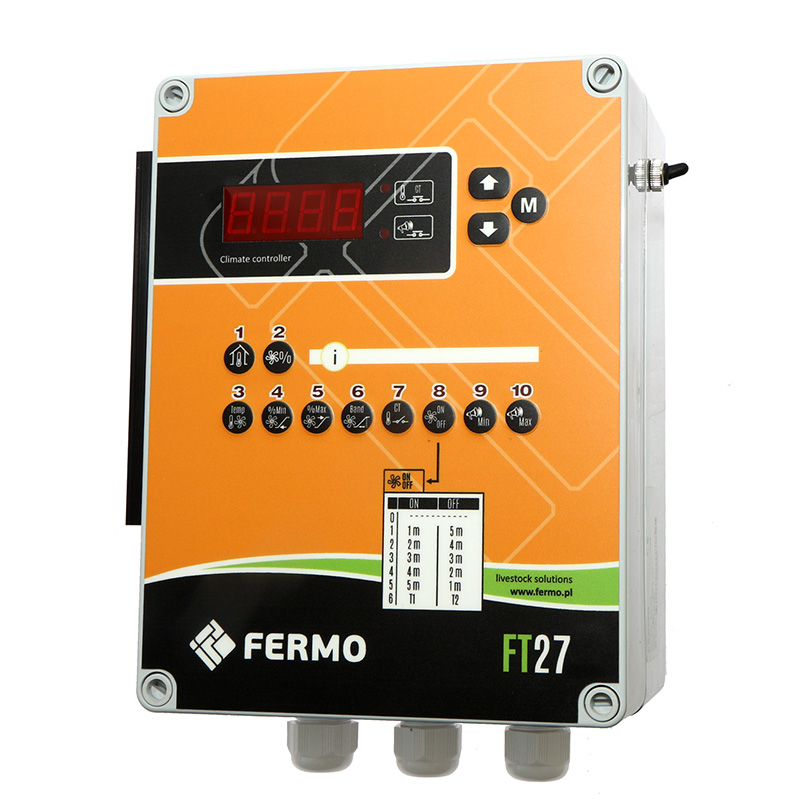

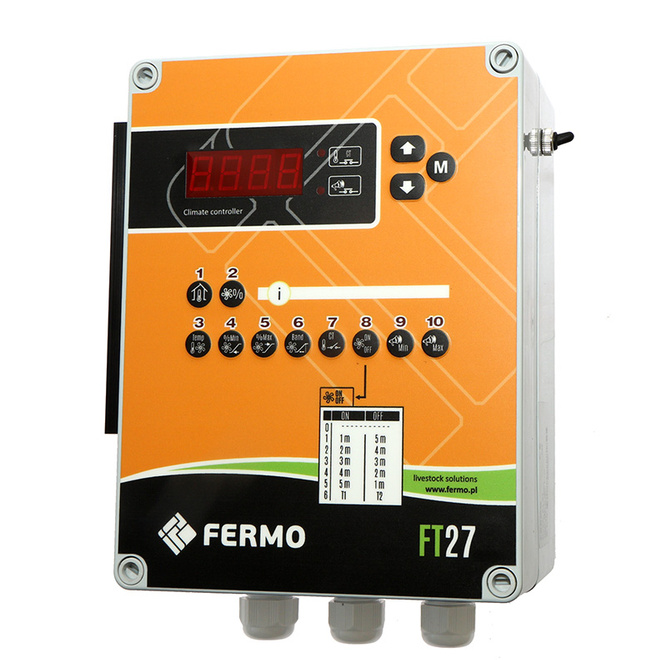

FT-27 climate controller with 6A liquid section, ventilation and alarm

Multi-27 multi-purpose climate controller designed to manage ventilation or heating in poultry houses and pig houses. The offered controller allows for smooth adjustment of connected devices with a maximum load of 6A. The liquid section can be expanded by FSD2 25A module. The controller also hasventilation function.

The FT-27 controller is ideal for automatic adjustment of fans, heaters or air intakes. The control device also has an alarm informing about too low or high temperature. Making settings is very simple, the values can be read from a large numerical display.

Main features:
• control of ventilation, heating or cooling
• possibility to program time sections for ventilation
• low and high temperature alarm relay
• liquid section 6A
• possibility of controlling air inlets or expansion of the liquid section (via FSD2 25A module)
• simple and intuitive operation

Technical parameters:
• power supply 230 V
• liquid section output 6A
• 2 relay outputs
• 1 output (0-10V)
• protection class IP55
• dimensions 181x247x106 mm
