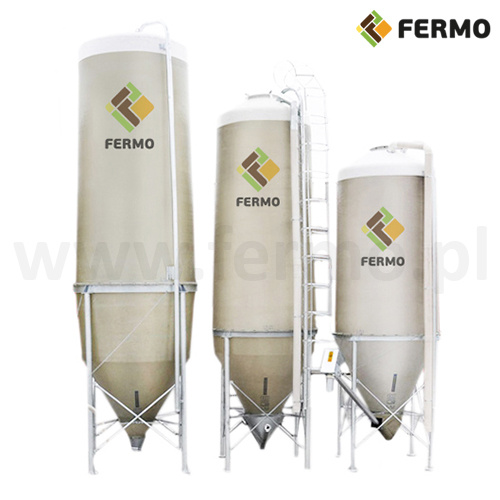

Fiberglass feed silo 18.5 t

Glass fibre feed shaft with the largest available capacity of 18.5 t for storing all types of feed. These types of silos are perfect for breeding poultry, pigs and cattle.

Fiberglass silos are an excellent alternative to traditional corrugated silos. They are much lighter while maintaining all strength and insulation parameters. Unlike traditional silos, they do not require maintenance during use.

The use of fiberglass silos is associated with many advantages, which include:

• special mergers consisting in connecting two elements horizontally eliminate the risk of leakage,
• smoothness of the internal walls preventing the suspension of feed inside the silo,
• the absence of condensation of water vapor inside the silo, which affects the quality of the feed and eliminates the risk of mold and animal diseases,
• easy to check the filling status thanks to the translucent upper part,
• long service life due to corrosion and UV resistance,
• variety of connections to the transport system.

The silo is made of polyester resin reinforced with glass fiber. The set includes a pneumatic chute and a loading pipe with an inlet pipe with a diameter of 4. The equipment also includes a ladder, a vent pipe, as well as all the necessary mounting elements.

model	Capacity		Number of legs	Height. Total	Height. Cylinder	Height. Cone	Cylinder diameter
	[m3]	[tons]	[pcs.]	[mm]	[mm]	[mm]	[mm]
MEP.6	6 times	3.0 m	4 times	4216 times	Article 1589	1450 times	1892
MEP.8	8 times	5.0 m	4 times	5133	2506 times	1450 times	1915
MEP.10	10 times	6.0 m	4 times	5378 times	2601	Article 1630	Article 2110
MEP.12	12 times	7.0 m	4 times	5958	3181	Article 1630	2100 times
MEP.15	15 times	8.5 m	4 times	6083	3056 times	1850s	2360 times
MEP.18	6 p.m.	10.0 m	4 times	6753	3726 times	1850s	2365 times
MEP.20	20 times	12.0 m	4 times	7285 times	4258 times	1850s	2360 times
MEP.22	10 p.m.	14.0 m	4 times	7634	4487	1985	2360 times
MEP.25	25 times	15.0 m	4 times	8469	5322	1985	2385 times
MEP.31	31 times	18.5 m	4 times	9671	5322	3200 times	2385 times
