Fan basket air mixer MultiFan fi 130 cm - 400V

The Multifan130 cm basket fan is responsible for air circulation in pig houses, barns, poultry houses or stables. The continuous flow of fresh air is an extremely important element in cattle or poultry farming. Especially at high temperatures, because too high a temperature can cause a decrease in appetite in cows, which in turn can lead to a decrease in cow productivity.

For the production of the three-phasebasket fan MultiFan fi 130 cm 400V, the highest quality materials were used. The use of very good quality materials in the production of the MultiFan mixer is very important for the proper functioning of the device at a later time or functioning in difficult conditions that prevail in the pigsty or barn (moisture or, for example, high concentration of ammonia).

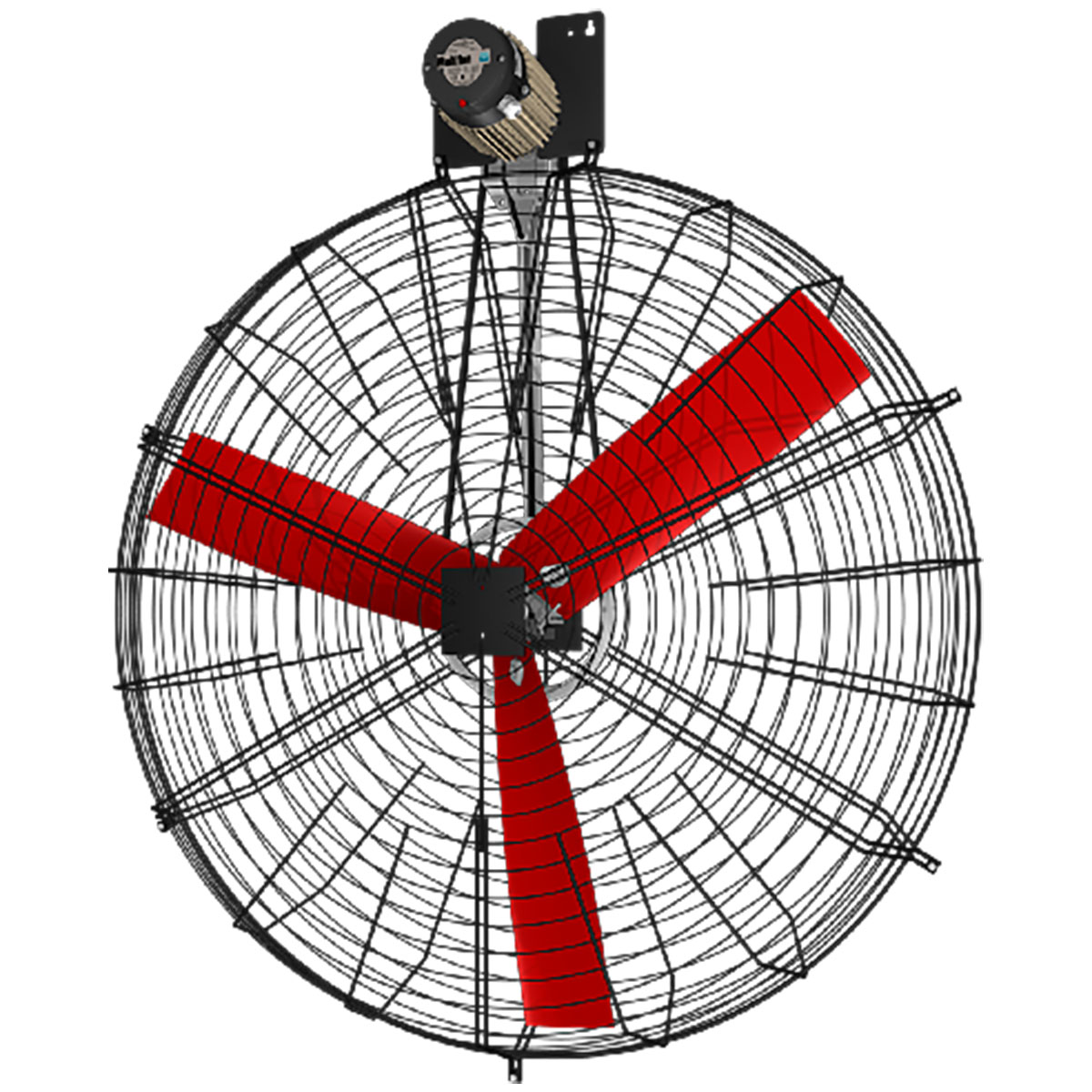

DIMENSIONS (photo no. 2):

• A01 1284 mm
• A03 1662 mm
• A04 236 mm
• A07 1390 mm
• A13 320 mm
• A14 400 mm

The Basket Mixer MultiFan fi 130 cm 400V is an efficient device; has approx. 520 rpm. Thanks to the use of specially profiled blades for mixing air, the operation of the MultiFan fi 130 cm basket fan is quiet (noise at only 67 dB!) and does not distract animals.

In order for the MultiFan fi 130 cm air mixer to be as efficient and effective as possible, it should be installed at a height of about 2.3-2.5 m. The basket fan should be suspended at an angle of 10 -12^o. Then the most optimal operating conditions of the MultiFan fi 130 400V air mixer are obtained.

Model 4D130-3PG-55
power:	400V
Engine power:	1300 watts (Printing)
Capacity at 0 Pa:	48,400 m3/h
Noise:	67 dB

The store also offers other models Multfan fans.

NOTE: Bulky goods sent on a pallet. Shipping cost estimated individually after placing the order. In order to calculate the approximate cost of transport, please contact: sklep@en.fermo.pl
