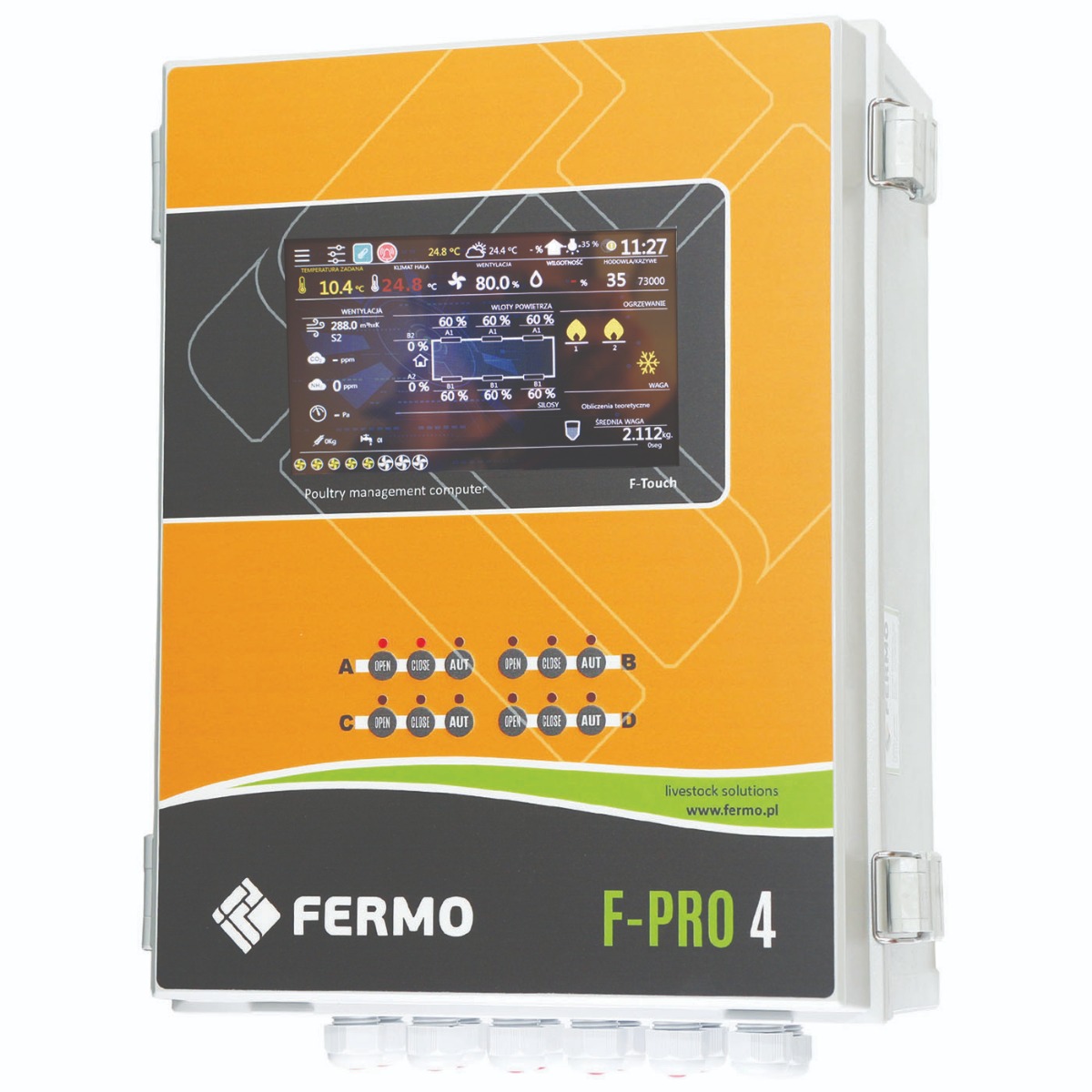

F-PRO 4 Plus production computer with curves, statistics, vacuum, CO2 and ammonia measurement

A new, improved version of the production computer (F-PRO 4), for comprehensive management of the production process on poultry farms. The F-PRO 4+ climate computer for poultry farms incorporates the best solutions of the previous version and has been additionally enriched with new functions and components, which makes it one of the best devices of this type on the market.

The most important changes in relation to the previous version:

• completely new, improved software that is devoid of the limitations of the older version
• the latest generation of components - new display, processor, memory
• new power supply section with the possibility of installing an emergency POWER SUPPLY (UPS)
• water and feed alarms, fall log increased to 300 days,
• possibility of full remote management of the system via a mobile application
• improved lighting curves
• increased number of inputs/outputs 0-10V and digital inputs
• possibility of dosing feed and water

Main features:

• inputs for 6 temperature sensors (4 included), 1 humidity sensor (not included), 1 vacuum sensor (not included) and 1 CO2 sensor (not included)
• management of ventilation, heating, cooling, air intakes and weather station
• microclimate control based on the curves of set temperature, ventilation, heating, lighting and inlet opening level
• control of inlets driven by single/three-phase motors. Possibility of independent control of 5 groups of air inlets.
• measurement of internal temperature, outside temperature, humidity, vacuum, CO₂ level and ammonia
• advanced ventilation control system: minimal, chimney, chimney - tunnel. Up to 12 ventilation levels can be set.
• poultry weighing system
• weighing and control of feed in silos
• collection of breeding data and export via USB port
• extensive alarm system
• large touch screen
• the ability to manage and view from a computer or smartphone from anywhere in the world (after purchasing CT1 module)

Technical specification:

• Power supply: 230V 50 Hz
• 16 relay outputs
• 4 outputs 0-10V
• 4 single/three-phase motor outputs
• Protection class: IP55
