ERMAF P Series Oil Heater Photocell N51400282 | Genuine Flame Sensor for Oil-Fired Heaters
Description

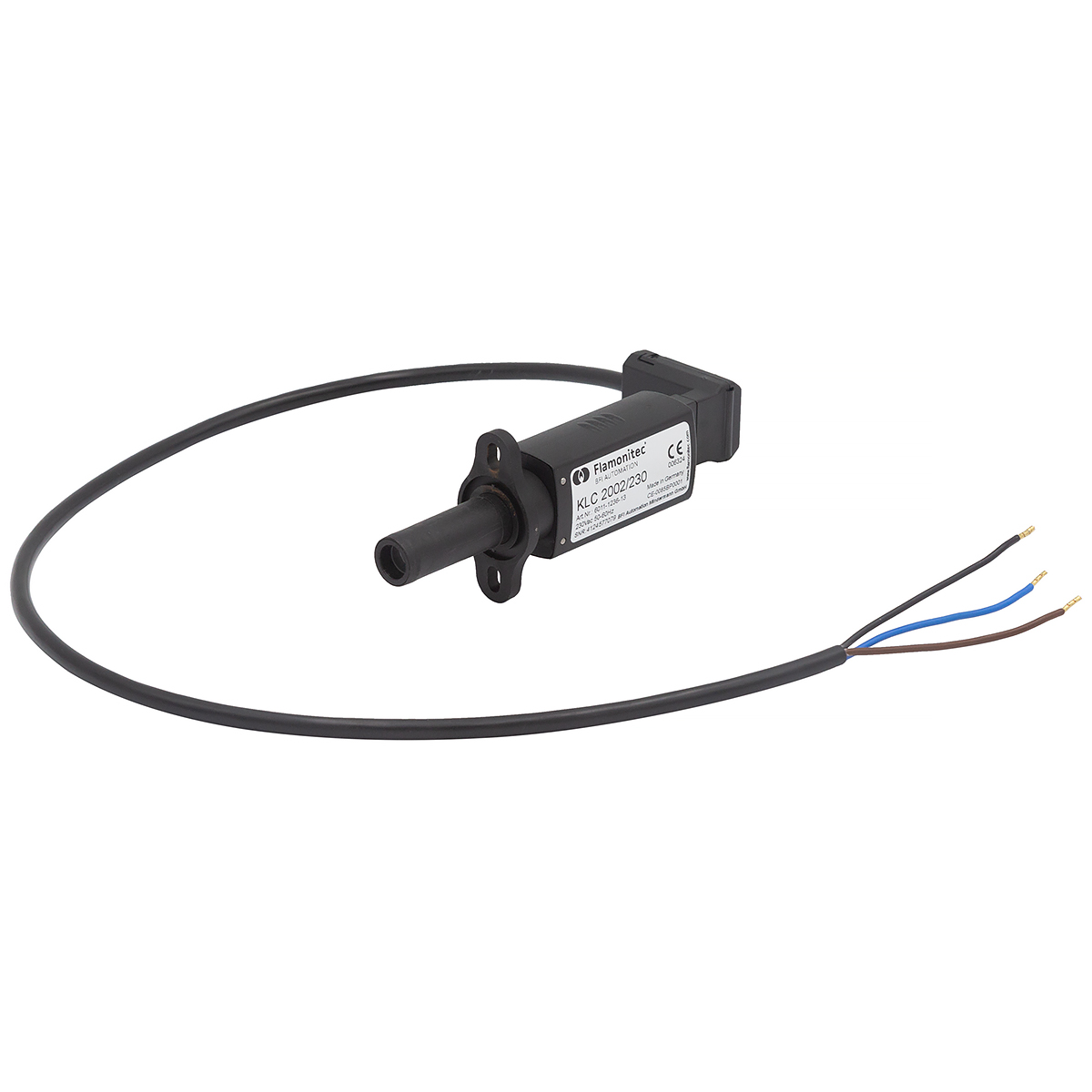

ERMAF Oil Heater Photocell N51400282 is a genuine flame detection sensor designed to monitor flame flicker frequency in ERMAF P Series oil-fired heaters, including the P40, P60, P80 and P120 models. Equipped with automatic sensitivity adjustment, the photocell requires no manual calibration during installation or servicing, ensuring fast, reliable operation and maximum safety.
If the flame is extinguished, the flame sensor immediately signals the controller, which shuts off the fuel supply in less than 0.6 seconds. This rapid response helps prevent fuel accumulation inside the combustion chamber and reduces the risk of ignition or explosion. The detector can be installed in any position, although installation close to the flame with direct line-of-sight alignment is recommended for optimal performance.
Technical Specifications
- Total Length (including connector): 115 mm
- Width: 30 mm
- Height: 22 mm
- Connection Cable Length: 1 m
- Weight: 0.029 kg
- Power Supply: 230 V AC (50–60 Hz)
- Operating Temperature: -20°C to +60°C
- Protection Rating: IP21
We also offer a wide range of genuine ERMAF replacement parts for oil-fired heaters and livestock heating systems.
Parameters
| Manufacturer | Ermaf |
|---|---|
| Material | Plastic |
| Dimensions | Dł x szer x wys: 115 x 30 x 22 mm Długość przewodu przyłączeniowego: 1 m |
| Color | Black |
| Voltage | 230 V |
