Poultry nipple drinking line LUBING large nipple cups Nipple every 20 cm - 3 m

Ready-made watering line for poultry LUBING designed for efficient watering of broilers, layers or ducks. The offered line consists of a 3-meter square pipe with 15 nipls and eaves cups. The presented line is a ready segment of the system, adapted for quick assembly and joining into up to 140 meter poultry watering systems.

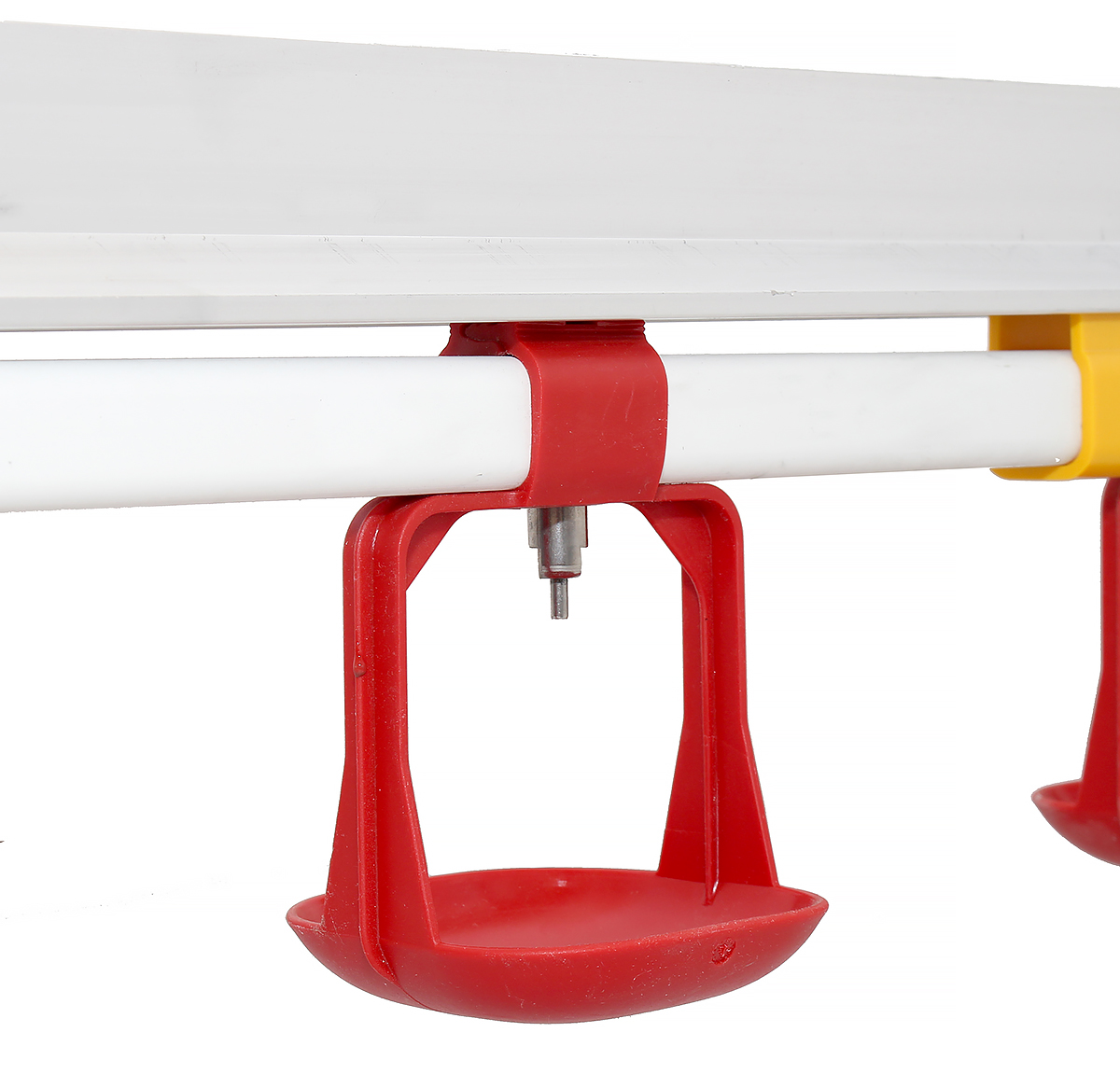

The presented set uses Top-Nipple nipple nipple plugs (15 pcs.), which work in all directions, which facilitates water intake for chickens. Thanks to this, this type of watering system is used from the firstday of life. In addition, under the pacifiers there is a a large two-armed eaves cups (15 pcs.), which prevent soaking of the litter.

Pacifiers and cups were placed on a square tube of 22 x 22 mm with a length of 300 cm at intervals of 20 cm.

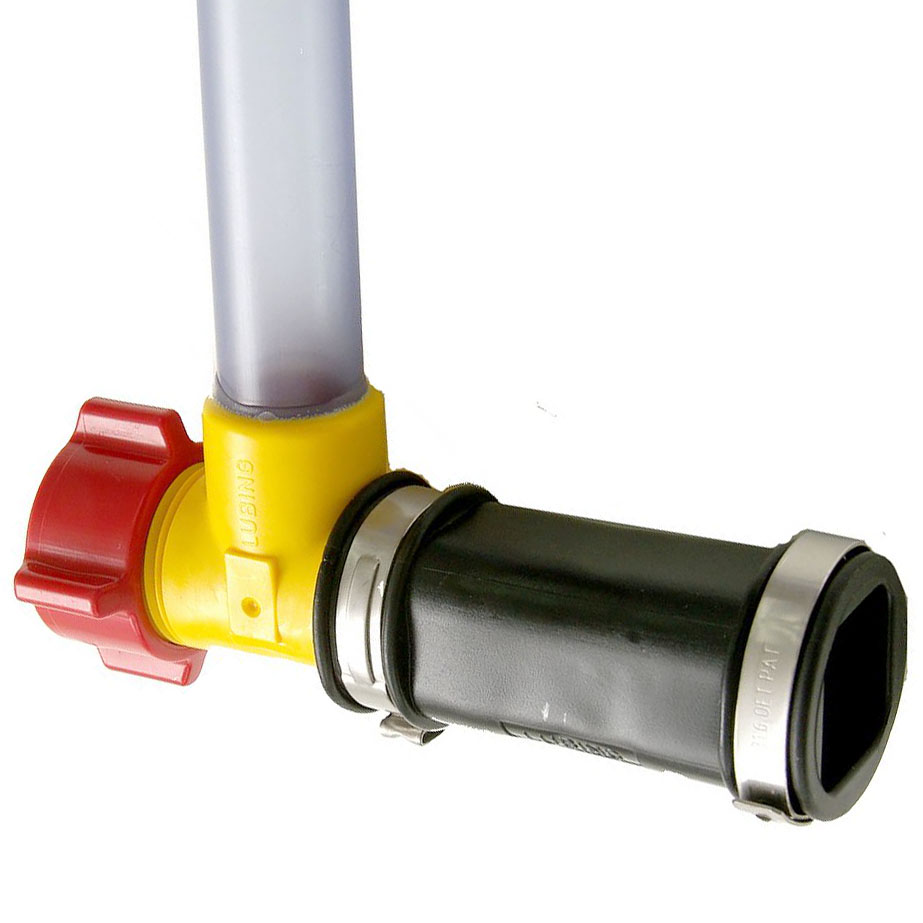

The square tube is also connected to an aluminum profile, which is designed to stabilize the entire line and also acts as an anti-rust. However, it should be remembered that in the case of laying hens, a electrical heat should be installed. Each line also has 1 hanging bracket and a rubber to connect to the next watering line.

Type of poultry:	Quantity per 1 pacifier:
Layers	10 - 12 pcs.
Broilers	18 - 20 pcs.
Duck	8 - 12 pcs.

In the calculation, one line falls on about 180 layers and ducks or 270 broilers.
