Digital Controller for Automatic Grain Dispensers

Description

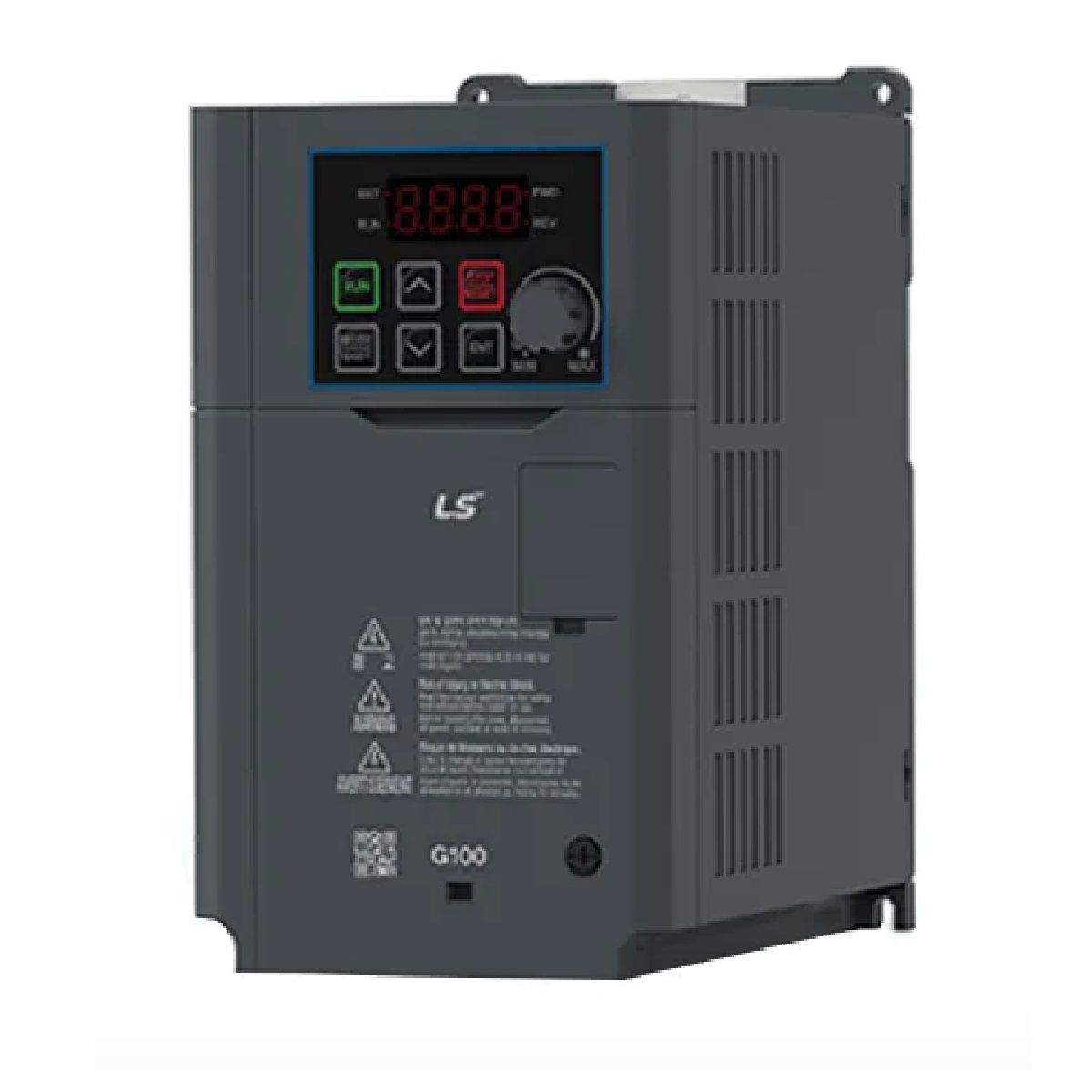

The digital control module for grain dispensers provides advanced grain dosing capabilities with a wide adjustment range and high accuracy. The required dosing level can be set electronically by entering the appropriate parameter, which is then shown on the display. The digital module is based on a vector frequency inverter and requires professional installation and calibration. We do not recommend self-installation. The control module can be installed in any convenient location, for example in an inspection or control room. It can also be integrated with a production computer such as the F-PRO 4, allowing the grain dosing rate to be controlled remotely via the Internet, for example using a smartphone.

Compatible with all Fermo F-SMART, F-DOZ and F-KOM grain dispensers.

Depending on the selected dispenser, the digital controller provides the following grain dosing ranges:

Dispenser type	Dispenser model	Feed line diameter	Minimum grain dose	Maximum grain dose
F-SMART	F-SMART/75/1475	75 mm	16%	58%
	F-SMART/75/1450	75 mm	24%	86%
	F-SMART/90/2775	90 mm	17%	64%
	F-SMART/90/2750	90 mm	26%	95%
F-DOZ	F-DOZ/56/1475	56 mm	16%	58%
	F-DOZ/56/1450	56 mm	24%	86%
	F-DOZ/75/1475	75 mm	16%	58%
	F-DOZ/75/1450	75 mm	24%	86%
	F-DOZ/90/1475	90 mm	16%	58%
	F-DOZ/90/1450	90 mm	24%	86%
	F-DOZ/125/1475	125 mm	16%	58%
	F-DOZ/125/1450	125 mm	24%	86%
F-KOM	F-KOM/125/1475	125 mm	16%	58%
F-KOM	F-KOM/125/1450	125 mm	24%	86%
