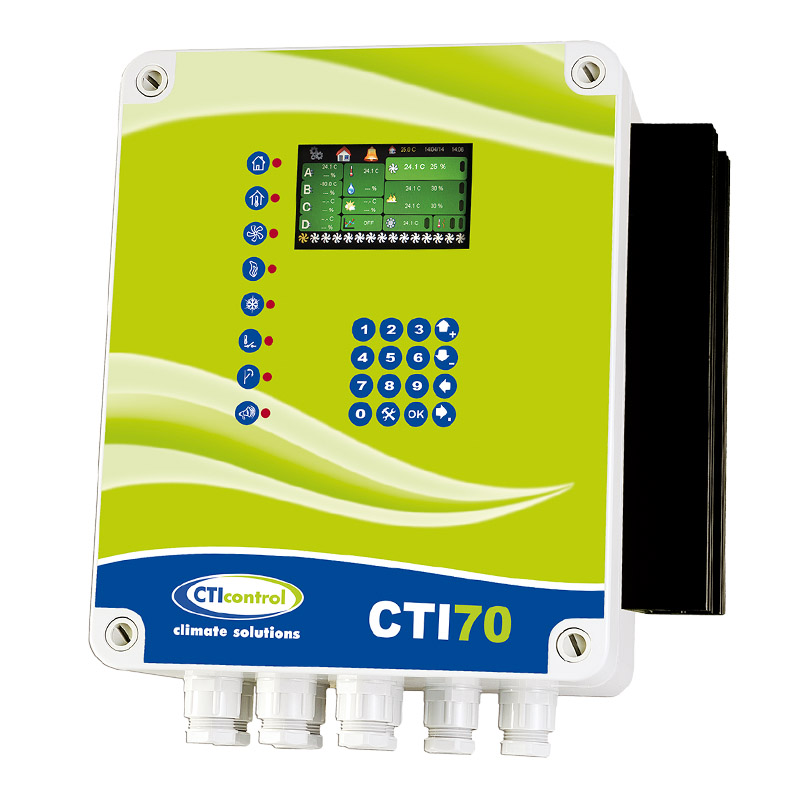

CTI70 25A production computer with curves, statistics, vacuum, CO2 or ammonia measurement



€1,242.71

Controller with built-in liquid section 25A dedicated to climate management in livestock buildings. Perfect for chicken coops, pig houses, rabbit houses. The use of a production computer allows for control of ventilation, heating, cooling and air intakes in animal husbandry.

The CTI70 manages the microclimate based on the curves of set temperature, ventilation level, heating and inlet opening level. It has outputs for connecting temperature, humidity, vacuum and carbon dioxide or ammonia sensors. Time programs allow you to manage lighting in the livestock building. In addition, the controller has the function of a water and feed consumption counter, which allows the breeder to quickly detect irregularities on the farm.

The production computer is simple to manage. It has a clear panel and a 4.3 color display.

Main features:

  • inputs for 4 temperature sensors (2 included), 1 Humidity sensor (not included), 1 Vacuum sensor (not included), 1 CO2 sensor (not included) / 1 NH3 sensor (not included), 4 digital
  • inputsmanagement of ventilation, heating, cooling, air intakes and weather station
  • microclimate control based on the curves of set temperature, ventilation level, heating and inlet opening level
  • control of inlets driven by single/three-phase motors. Possibility of independent control of 2 groups of air inlets,
  • advanced ventilation control system: minimal, chimney, chimney - tunnel. Possibility of setting up to 8 ventilation levels,
  • collection of breeding data and export via USB port
  • alarm system
  • can be managed and viewed from a computer or smartphone from anywhere in the world (using the CTI control module)

    Parameters:
  • Power supply: 230V 50 Hz
  • 16 relay outputs
  • 4 outputs 0-10V
  • Dimensions: 220x297x105 mm
  • Liquid section 15A
  • Protection class: IP55

  • Fast shipping

    14 days
    for return

    Over 500,000
    satisfied customers

    Availability
    Available on request

    Controller with built-in liquid section 25A dedicated to climate management in livestock buildings. Perfect for chicken coops, pig houses, rabbit houses. The use of a production computer allows for control of ventilation, heating, cooling and air intakes in animal husbandry.

    The CTI70 manages the microclimate based on the curves of set temperature, ventilation level, heating and inlet opening level. It has outputs for connecting temperature, humidity, vacuum and carbon dioxide or ammonia sensors. Time programs allow you to manage lighting in the livestock building. In addition, the controller has the function of a water and feed consumption counter, which allows the breeder to quickly detect irregularities on the farm.

    The production computer is simple to manage. It has a clear panel and a 4.3 color display.

    Main features:

  • inputs for 4 temperature sensors (2 included), 1 Humidity sensor (not included), 1 Vacuum sensor (not included), 1 CO2 sensor (not included) / 1 NH3 sensor (not included), 4 digital
  • inputsmanagement of ventilation, heating, cooling, air intakes and weather station
  • microclimate control based on the curves of set temperature, ventilation level, heating and inlet opening level
  • control of inlets driven by single/three-phase motors. Possibility of independent control of 2 groups of air inlets,
  • advanced ventilation control system: minimal, chimney, chimney - tunnel. Possibility of setting up to 8 ventilation levels,
  • collection of breeding data and export via USB port
  • alarm system
  • can be managed and viewed from a computer or smartphone from anywhere in the world (using the CTI control module)

    Parameters:
  • Power supply: 230V 50 Hz
  • 16 relay outputs
  • 4 outputs 0-10V
  • Dimensions: 220x297x105 mm
  • Liquid section 15A
  • Protection class: IP55

  • Dimensions:
    220x297x105 mm
