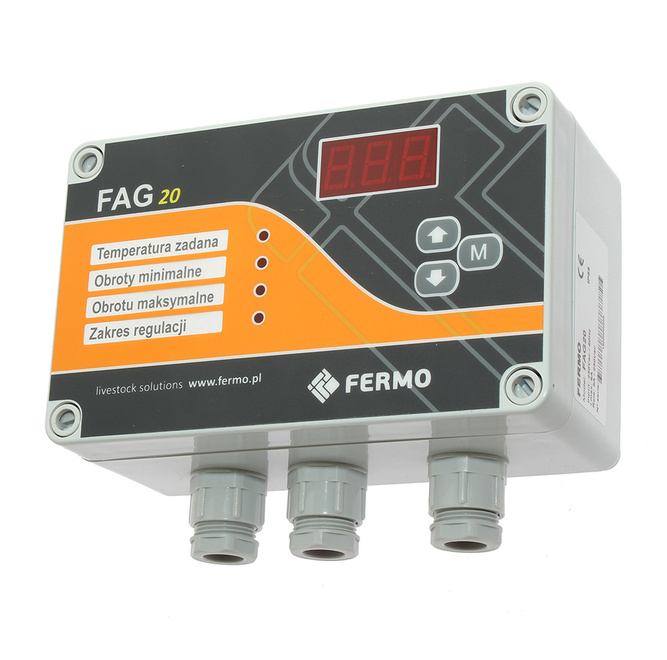

Climate controller FAG20 6A with infinitely variable speed control

The FAG20 controller is an easy-to-use climate controller designed for installation in livestock buildings. The presented climate controller can control the operation of fans or heaters in a smooth way in the range from 0 to 100%. The maximum load current is 6A.

The FAG20 ventilation system controller works with fans or heaters with asynchronous motors. In the case of using the controller for ventilation, after setting the set temperature and exceeding it, the controller will gradually increase the fan speed as needed, which significantly reduces the cost of power consumption and prolongs the life of fan motors.

A very big advantage is undoubtedly the uncomplicated operation of the controller. In the regulator we set 4 values: set temperature, minimum and maximum revolutions and adjustment range. All values are shown on the LCD display. This solution means that the offered fan controller can be easily operated by breeders.The included temperature sensor ensures the accuracy of the controller up to ±0.2 ^oC. The controller can work in the range from -20 to +80^oC.
