F2204

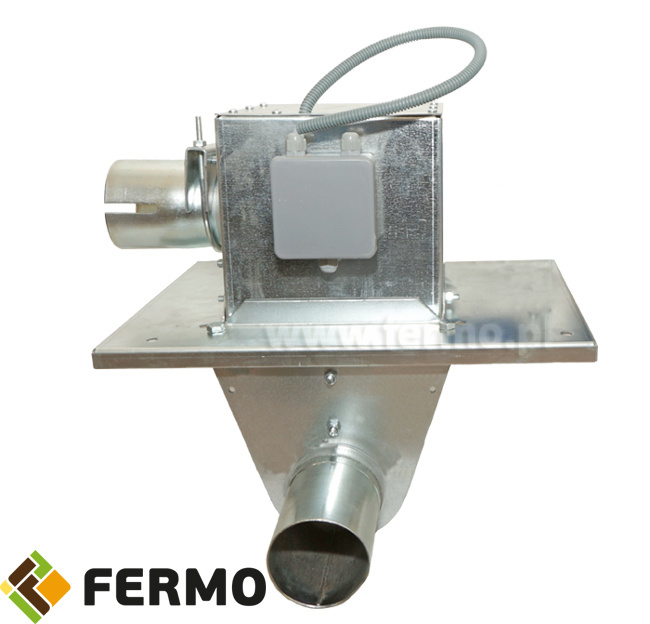

Flex auger splitter fi 75 mm on 2 sides 180 degrees
€276.18
Universal splitter for automatic broiler feeding systems. The splitter allows you to change the direction of the feeder without the need for extensive rur and colate of spiral feed pipelines , which would require large spaces and space. The device is adapted to be combined with a drive module equipped with a special gearbox for transporting feed from silos or feed chute flanges.
The feed that comes from the silos falls into the splitter, which has prepared subsequent exits on the transverse lines to the laying hen feeding systems. The double-sided exit allows you to freely choose the direction and side of transporting turkey food to chicken coops. The distributor for the feeding line can be set both along and across, which makes the module very useful especially when creating extensive broiler feeding systems based on several / several chicken coops.
The broiler feeding line branching attachment has a fi75mm pore pipe input to the drive shaft for spiral transferring feed from silos. Inside there is a mechanical feed backfill sensor that controls the operation of the engine, supplying feed from the hopper flanges. The feeder controller will start the engine and the spiral from the silos in the event that the feed begins to decrease in the splitter.
In addition, a cast iron spindle has been placed inside the splitter chute, which is designed to prevent the feed from blocking in the chute.
The total dimensions of the splitter are 48x30x40cm. The feeder distributor has an input and output for spiral pipes with a diameter of fi 75mm. The whole was made of steel sheet specially galvanized to protect the device from harmful conditions prevailing in chicken coops. Thanks to this, the crossbar for longitudinal lines is resistant to corrosion of mechanical damage, and the whole is very easy to keep clean.
The price applies only to the feed line splitter with chute. There is no motor or drive shaft gearbox for longitudinal lines included.
The feed that comes from the silos falls into the splitter, which has prepared subsequent exits on the transverse lines to the laying hen feeding systems. The double-sided exit allows you to freely choose the direction and side of transporting turkey food to chicken coops. The distributor for the feeding line can be set both along and across, which makes the module very useful especially when creating extensive broiler feeding systems based on several / several chicken coops.
The broiler feeding line branching attachment has a fi75mm pore pipe input to the drive shaft for spiral transferring feed from silos. Inside there is a mechanical feed backfill sensor that controls the operation of the engine, supplying feed from the hopper flanges. The feeder controller will start the engine and the spiral from the silos in the event that the feed begins to decrease in the splitter.
In addition, a cast iron spindle has been placed inside the splitter chute, which is designed to prevent the feed from blocking in the chute.
The total dimensions of the splitter are 48x30x40cm. The feeder distributor has an input and output for spiral pipes with a diameter of fi 75mm. The whole was made of steel sheet specially galvanized to protect the device from harmful conditions prevailing in chicken coops. Thanks to this, the crossbar for longitudinal lines is resistant to corrosion of mechanical damage, and the whole is very easy to keep clean.
The price applies only to the feed line splitter with chute. There is no motor or drive shaft gearbox for longitudinal lines included.
Fast shipping
14 days for return
Over 500,000 satisfied customers
Availability
No order possible
Universal splitter for automatic broiler feeding systems. The splitter allows you to change the direction of the feeder without the need for extensive rur and colate of spiral feed pipelines , which would require large spaces and space. The device is adapted to be combined with a drive module equipped with a special gearbox for transporting feed from silos or feed chute flanges.
The feed that comes from the silos falls into the splitter, which has prepared subsequent exits on the transverse lines to the laying hen feeding systems. The double-sided exit allows you to freely choose the direction and side of transporting turkey food to chicken coops. The distributor for the feeding line can be set both along and across, which makes the module very useful especially when creating extensive broiler feeding systems based on several / several chicken coops.
The broiler feeding line branching attachment has a fi75mm pore pipe input to the drive shaft for spiral transferring feed from silos. Inside there is a mechanical feed backfill sensor that controls the operation of the engine, supplying feed from the hopper flanges. The feeder controller will start the engine and the spiral from the silos in the event that the feed begins to decrease in the splitter.
In addition, a cast iron spindle has been placed inside the splitter chute, which is designed to prevent the feed from blocking in the chute.
The total dimensions of the splitter are 48x30x40cm. The feeder distributor has an input and output for spiral pipes with a diameter of fi 75mm. The whole was made of steel sheet specially galvanized to protect the device from harmful conditions prevailing in chicken coops. Thanks to this, the crossbar for longitudinal lines is resistant to corrosion of mechanical damage, and the whole is very easy to keep clean.
The price applies only to the feed line splitter with chute. There is no motor or drive shaft gearbox for longitudinal lines included.
The feed that comes from the silos falls into the splitter, which has prepared subsequent exits on the transverse lines to the laying hen feeding systems. The double-sided exit allows you to freely choose the direction and side of transporting turkey food to chicken coops. The distributor for the feeding line can be set both along and across, which makes the module very useful especially when creating extensive broiler feeding systems based on several / several chicken coops.
The broiler feeding line branching attachment has a fi75mm pore pipe input to the drive shaft for spiral transferring feed from silos. Inside there is a mechanical feed backfill sensor that controls the operation of the engine, supplying feed from the hopper flanges. The feeder controller will start the engine and the spiral from the silos in the event that the feed begins to decrease in the splitter.
In addition, a cast iron spindle has been placed inside the splitter chute, which is designed to prevent the feed from blocking in the chute.
The total dimensions of the splitter are 48x30x40cm. The feeder distributor has an input and output for spiral pipes with a diameter of fi 75mm. The whole was made of steel sheet specially galvanized to protect the device from harmful conditions prevailing in chicken coops. Thanks to this, the crossbar for longitudinal lines is resistant to corrosion of mechanical damage, and the whole is very easy to keep clean.
The price applies only to the feed line splitter with chute. There is no motor or drive shaft gearbox for longitudinal lines included.
Pipe size:
75 mmMaterial:
Galvanised steelDimensions:
40x30x40cm (dł. x szer. x wys.)wejście i wyjścia na rury fi 75mm
Color:
SilverLog in to add your opinion
