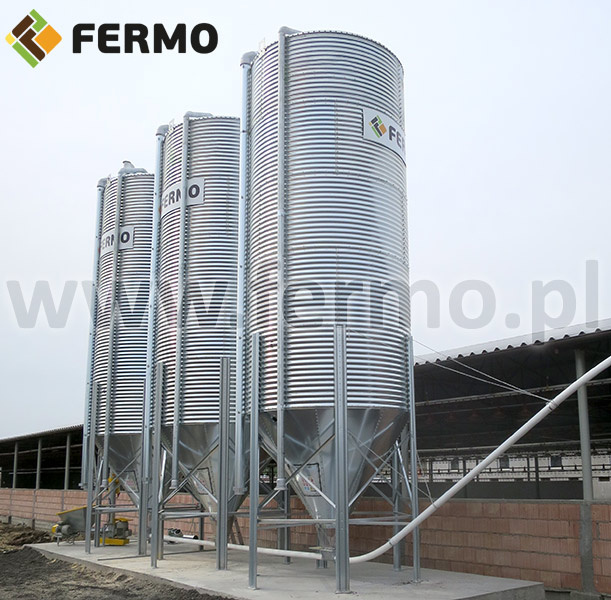

Galvanized feed silo 11 tons

A corrugated metal silo with a capacity of 11 tons is used to store feed or granules used in livestock farming.

Feed silos for feeding systems are equipped with a sufficient number of inspection windows and a manhole in the lower part of the hopper, enabling safe control of the cleanliness and technical condition of the empty silo. For their disinfection, the smoke springs, which have fungal and bactericidal effects, are used.

Steel siloshave a pneumatic loading pipe with a diameter of 100 mm and a galvanized vent pipe with a diameter of 160 mm.

The whole structure is mounted on the foundation according to the information contained in the catalog of feed
silosThe silo in the standard version has all the necessary elements of equipment for its proper functioning, and these are:

• inspection hatch in the silo hopper,
• aluminum fire quick connector for fodder wagon,
• loading pipe 100 mm with vent pipe 160 mm,
• standard hole 44 cm at the end of the hopper under the feed pipeline,
• durable Legs in the shape of Omega,
• inspection windows for assessing the level of feed,

Important information:

• Diameter: 2,3 m
• Height: 6,4 m
• Number of legs: 4
• Foundation: 2.75 x 2.72 x 30 cm

Feed silos do not require a building permit (height below 7 m only per notification)

Each silo can be additionally equipped with the following elements:

• ladder + manhole in the roof + protective jacket,
• bagg for manual feed collection
• bolt at the end of the hopper
• Big Dutchman basket adapter (adapter)
• manhole in the roof (without ladder)
• feed hanging cartridge
• additional feed level windows
