Weighing system for silo 25 t - 4 strain gauges FERMO JWS

Feed weighing systems in silos are another important element of managing the production process on a poultry farm. Silo scales enable precise control of the remaining amount of feed, which is important when planning deliveries, assessing the efficiency of feed consumption and monitoring production. The presented set is dedicated for mounting silos with four legs, the capacity of which does not exceed 25 t, e.g. silos made of glass fiber.

MAIN FEATURES:
• Feed consumption statistics for the last 120 days
• Record of silo loading history
• Programs for dosing a certain amount of feed - feeding curve
• wireless communication with a smartphone or computer via CT1 module
• time programs for the operation of feeder engines
• 2 relays - one alarm and the other disabling the transverse line during loading to increase weighing accuracy
• 12V input for emergency power supply from the battery or battery

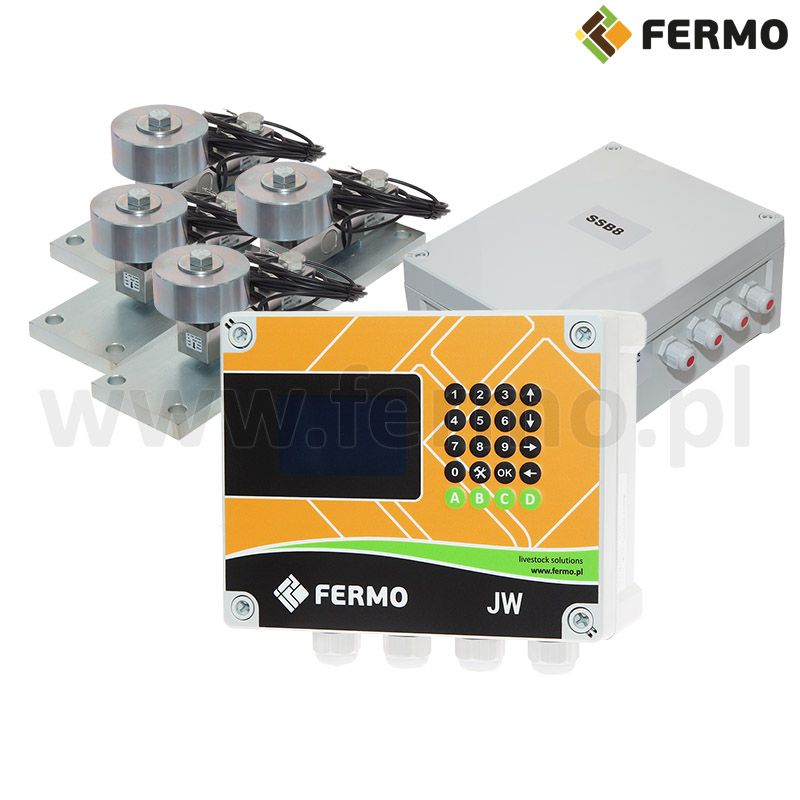

Composition of the set:
• balance controller
• adder
• strain gauges weighing under the silo - 4 pcs.

Technical specification:
• INPUTS: 1 temperature sensor input, 2 counter digital inputs, 1 Adder input
• OUTPUTS: 2 Relay outputs, CAN port
• POWER SUPPLY: 230V
• PROTECTION CLASS: IP55
• STANDARDS: 89/392/CEE - 73/336/CEE - 73/23/CEE
• DIMENSIONS: 187 x 122 x 90 mm

The silo weighing system can be freely configurable. It is possible to change the number of feet weighing under the silo.
