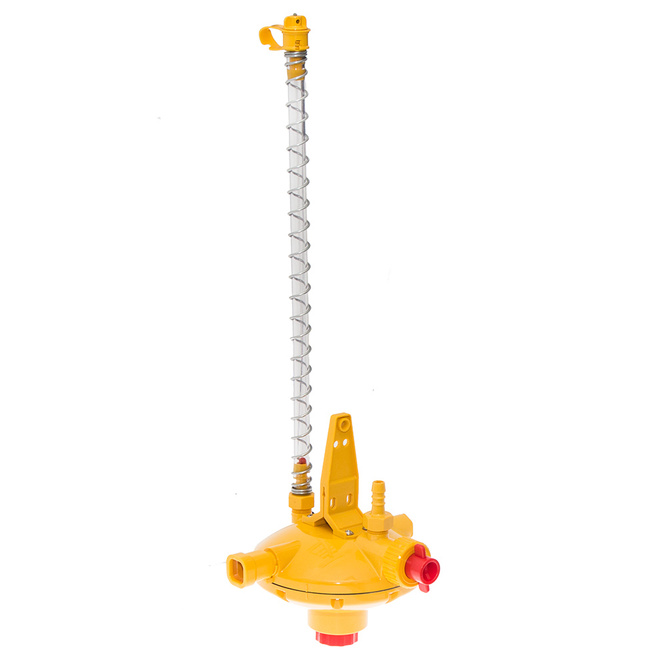

Water pressure regulator Lubing for broiler drinking system

Made of the highest quality materials (durable plastic), the reducer was manufactured by a German company. The robust design ensures low failure rate of the device and reliability of operation.

Equipped with a special regulator, with the help of which it is possible to set the pressure introduced into the drinker (stepless adjustment). Due to the fact that watering systems operate under low pressure, it is necessary to have this product. The reducer effectively eliminates the risk of flooding of the livestock building and facilitates the operation of the entire system.

This product allows you to connect various elements of the watering system directly to the water supply network. A hose coupled with a tap with running water is connected to the input of the reducer. This solution means that the water pressure at the output is lowered. In addition, it has a flush function, which after connecting a 1/2 inch hose to running water and turning a special key cleans the entire system.

A special transparent muff allows you to control (measure) the pressure at the entrance by monitoring the height of the water column.

The presented reducer with pressure regulation is equipped with:
- pressure indicator at the outlet with venting (reinforced with a steel spring)
- hook for hanging and mounting the
aluminum profile- 1 inch input on the hose or thread from the
water supply network- 2 outputs with reduced pressure (the device can simultaneously support 2 lines of drinkers)
- self-sealing auto-fitting for square 22x22 mm

As you can see, the device contains all the necessary connections and hooks, so it is ready to be plugged into the watering system immediately after its acquisition.

Basic parameters of the reducer:
- range of output pressure adjustment: from 0 to 50 cm of water column as standard (after replacing or extending the vent tube, the output strait can be raised to 100 cm of the water column)
- input connection: 3/4 inch or 1/2 inch hose - it is possible to apply reduction and use other connections
- output: for 22x22 mm
- maximum input pressure: 3 Bar
The offered product has a one-year warranty. Important! In the case of plugging directly into the water supply network, it is necessary to use a filter that protects against contamination that may affect the operation of the reducer.
