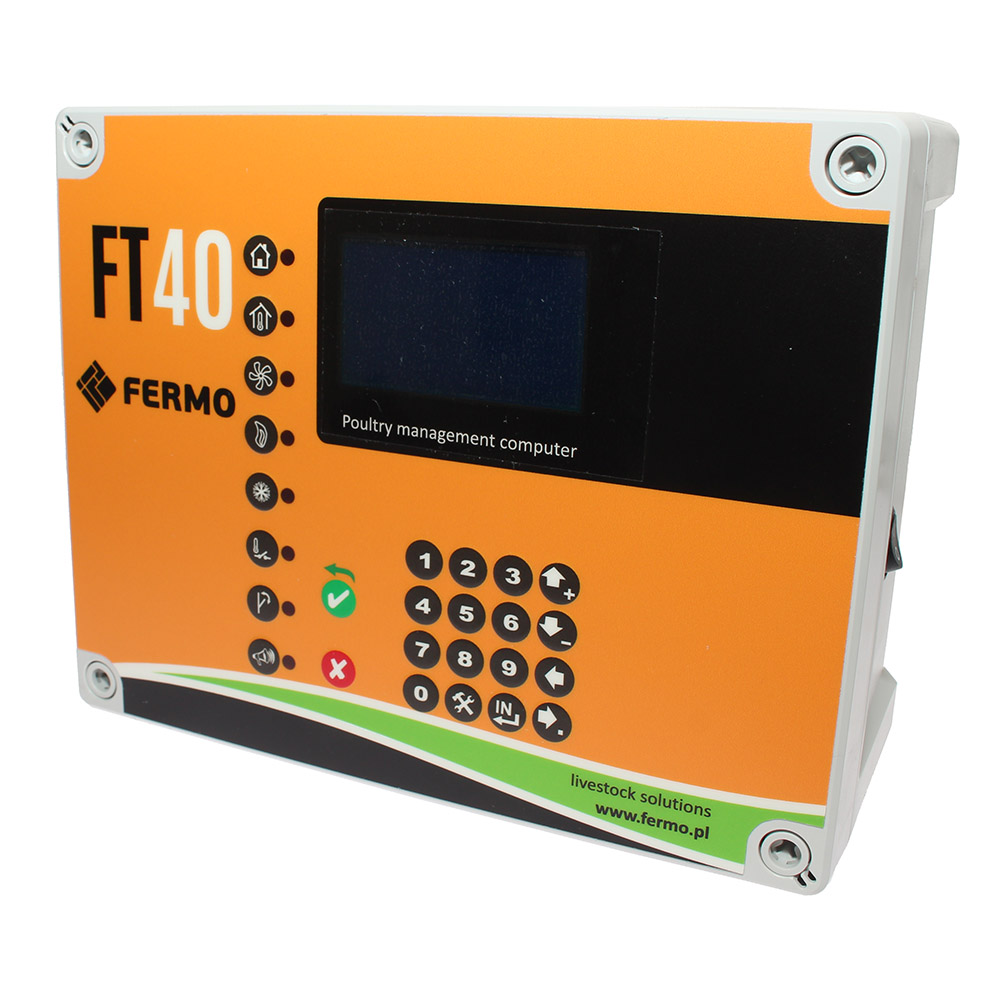

FT-40 production computer with 6A fluid section, curves and statistics

Production computer with liquid section 6A, curves and statistics dedicated to climate control and production process in livestock facilities m.in in poultry houses.

The device, thanks to the given curves, allows the breeder to control the heating, ventilation, cooling and lighting system in the poultry facility. The whole is uncomplicated to use. The device has a clear LCD display with access to all the functions offered by the controller.

Main features:

• outputs for 4 temperature sensors (2 included), 1 humidity sensor (not included), 1 vacuum sensor and 1 CO2 sensor (not included)
• management of ventilation, heating, cooling, air intakes, lighting system (time programs)
• climate control in the hen house based on curves: set temperature, ventilation level, heating and inlet opening level
• measurement of internal temperature, outside temperature (weather station), humidity, vacuum or CO2 level
• advanced ventilation control system: minimal, chimney - tunnel, tunnel. Adjustable to ventilation levels adapted to production needs
• generating extensive statistics (entries and falls in the herd, counting feed and water consumption, etc.), USB port for data export.
• 2 independent heating sections
• extensive alarm system
• the ability to manage and view from a computer or smartphone from anywhere in the world

Technical specification:

• Power supply: 230V 50 Hz
• Liquid section: 6A
• 1 input 0-10V (allows you to connect a CO2 sensor or vacuum sensor)
• 9 relay outputs
• 3 outputs 0-10V
• Protection class: IP55
