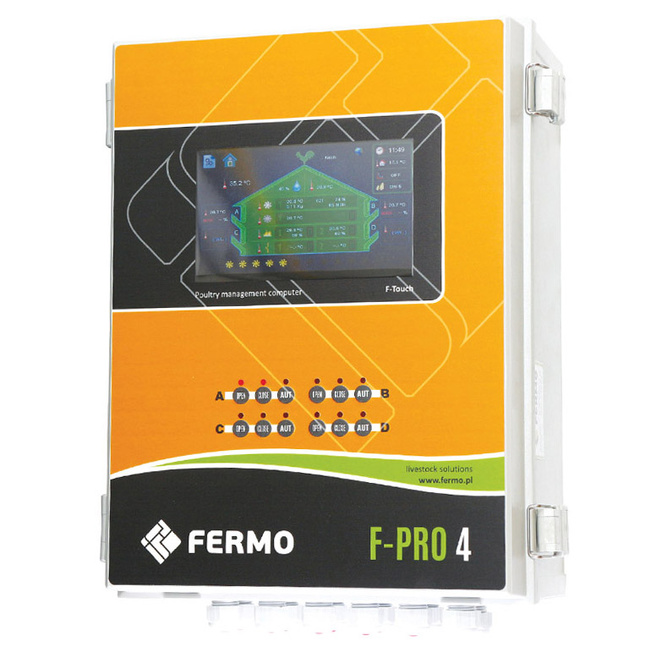

F-PRO 4 production computer with curves, statistics, vacuum, CO2 and ammonia measurement

Professional computer for managing the production process on the poultry palms. The F-PRO4 controller allows you to control ventilation, heating, cooling or lighting. In addition, it is possible to connect CO₂ and NH₃ sensors to monitor the concentration of carbon dioxide and ammonia. The production computer also has the option of weighing and monitoring poultry and weighing and inspecting feed in silos.

The F-PRO4 is equipped with a large touchscreen display. It has built-in WiFi to connect to the Internet and communication module. The applied technology allows you to manage the control computer from anywhere. The controller system collects statistical data of breeding, through the USB port it is possible to export this data. Liquid section available by external FSD2 module

Main features:

• outputs for 7 temperature sensors (4 included), 1 humidity sensor (not included), 1 vacuum sensor (not included) and 1 CO2 sensor (not included)
• management of ventilation, heating, cooling, air intakes and weather station
• microclimate control based on the curves of set temperature, ventilation level, heating and inlet opening level
• control of inlets driven by single/three-phase motors. Possibility of independent control of 4 groups of air inlets.
• measurement of internal temperature, outside temperature, humidity, vacuum, CO₂ level and ammonia
• advanced ventilation control system: minimal, chimney, chimney - tunnel. Up to 12 ventilation levels can be set.
• poultry weighing system
• weighing and control of feed in silos
• collection of breeding data and export via USB port
• extensive alarm system
• large touch screen
• the ability to manage and view from a computer or smartphone from anywhere in the world

Technical specification:

• Power supply: 230V 50 Hz
• 16 relay outputs
• 4 outputs 0-10V
• 4 single/three-phase motor outputs
• Protection class: IP55
