F1852
Drinker bell Standard - TAV 18
€16.77

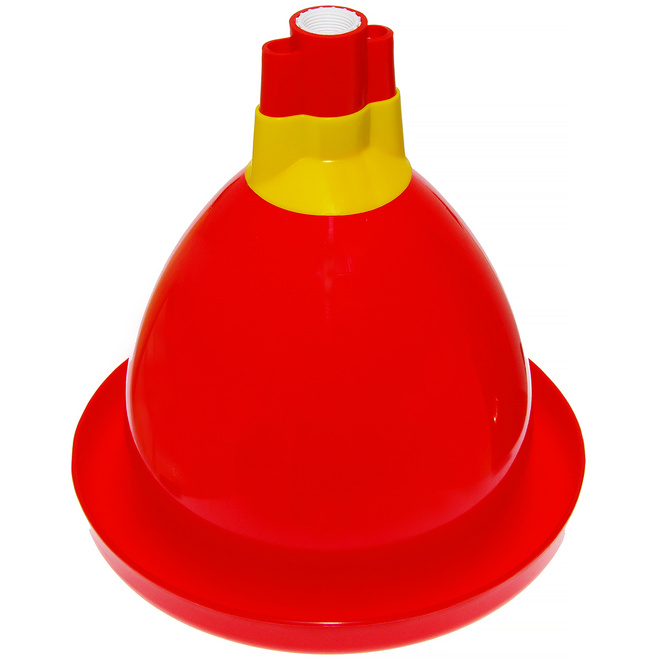

Universal drinker bell designed for use in bell drinkers for broilers.It is made of hard plastic resistant to scratches or cracks and very easy to keep clean.
A complete drinker valve for broilers is screwed into the dome of the drinker, which is responsible for the amount of water supplied to the drinker. The harder we screw the valve into the drinker, the greater the amount of water will be in the gutter. Water flows into the drinker trough on the walls of the bell from the holes made on both sides of the head into which the valve is screwed. The holes are additionally coatinged with a special flange, which protects against contamination and clogging of holes.
Two openings are additionally led out through the top of the bell. With them, the hanger arms are installed together with the fixed balast, which is located under the dome of the bell. The forks are hooked on the handles LAV9 HAK valve tubes. Thanks to this solution, the entire drinker is properly weighted and gains high stability.
The gutter of the drinker bell has a width of 33mm and a maximum depth of 35mm. The diameter of the trough circumference is 35cm.
A complete drinker valve for broilers is screwed into the dome of the drinker, which is responsible for the amount of water supplied to the drinker. The harder we screw the valve into the drinker, the greater the amount of water will be in the gutter. Water flows into the drinker trough on the walls of the bell from the holes made on both sides of the head into which the valve is screwed. The holes are additionally coatinged with a special flange, which protects against contamination and clogging of holes.
Two openings are additionally led out through the top of the bell. With them, the hanger arms are installed together with the fixed balast, which is located under the dome of the bell. The forks are hooked on the handles LAV9 HAK valve tubes. Thanks to this solution, the entire drinker is properly weighted and gains high stability.
The gutter of the drinker bell has a width of 33mm and a maximum depth of 35mm. The diameter of the trough circumference is 35cm.
Fast shipping
14 days for return
Over 500,000 satisfied customers
Availability
In stock
Universal drinker bell designed for use in bell drinkers for broilers.It is made of hard plastic resistant to scratches or cracks and very easy to keep clean.
A complete drinker valve for broilers is screwed into the dome of the drinker, which is responsible for the amount of water supplied to the drinker. The harder we screw the valve into the drinker, the greater the amount of water will be in the gutter. Water flows into the drinker trough on the walls of the bell from the holes made on both sides of the head into which the valve is screwed. The holes are additionally coatinged with a special flange, which protects against contamination and clogging of holes.
Two openings are additionally led out through the top of the bell. With them, the hanger arms are installed together with the fixed balast, which is located under the dome of the bell. The forks are hooked on the handles LAV9 HAK valve tubes. Thanks to this solution, the entire drinker is properly weighted and gains high stability.
The gutter of the drinker bell has a width of 33mm and a maximum depth of 35mm. The diameter of the trough circumference is 35cm.
A complete drinker valve for broilers is screwed into the dome of the drinker, which is responsible for the amount of water supplied to the drinker. The harder we screw the valve into the drinker, the greater the amount of water will be in the gutter. Water flows into the drinker trough on the walls of the bell from the holes made on both sides of the head into which the valve is screwed. The holes are additionally coatinged with a special flange, which protects against contamination and clogging of holes.
Two openings are additionally led out through the top of the bell. With them, the hanger arms are installed together with the fixed balast, which is located under the dome of the bell. The forks are hooked on the handles LAV9 HAK valve tubes. Thanks to this solution, the entire drinker is properly weighted and gains high stability.
The gutter of the drinker bell has a width of 33mm and a maximum depth of 35mm. The diameter of the trough circumference is 35cm.
Application:
PoultryMaterial:
PlasticDimensions:
wysokość 37cm, średnica 35cmszerokość rynny 33mm, głębokość rynny 35mm
Color:
RedLog in to add your opinion
